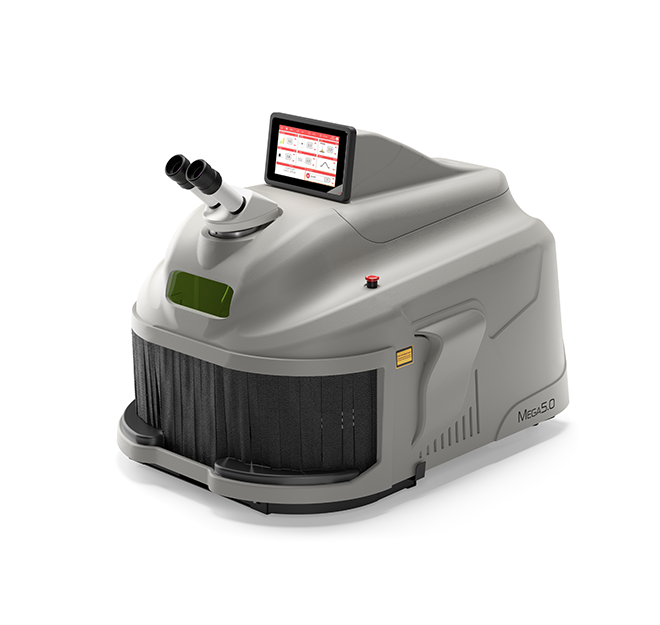

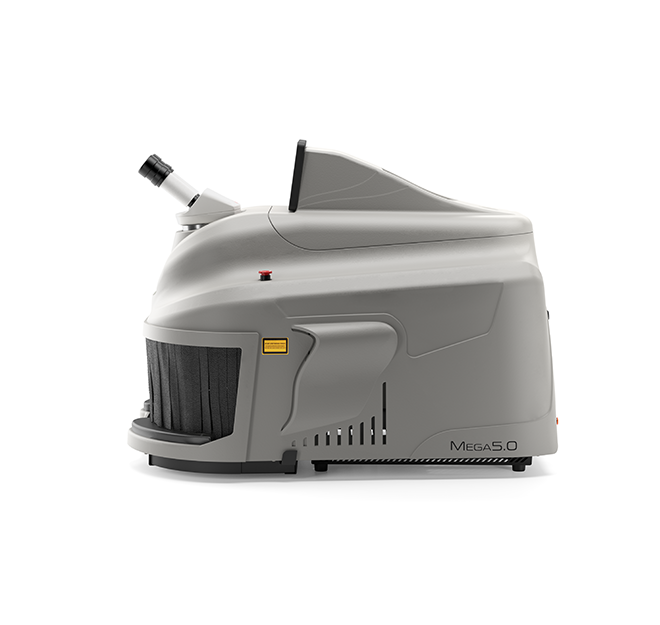

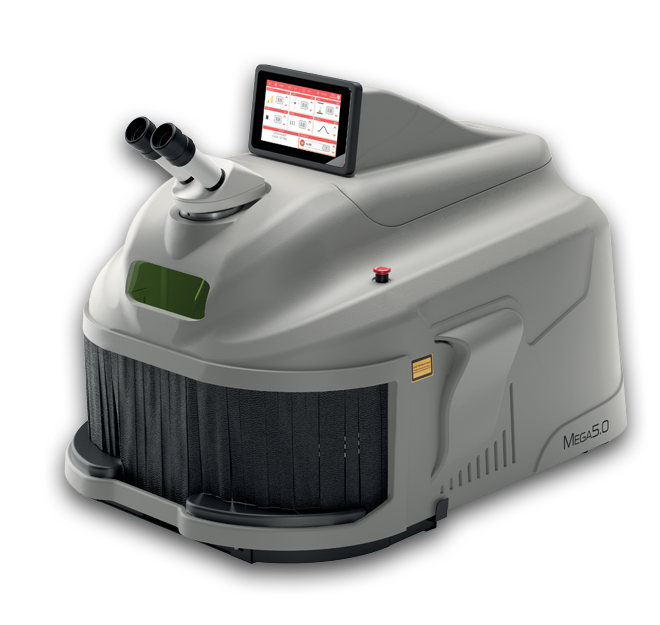

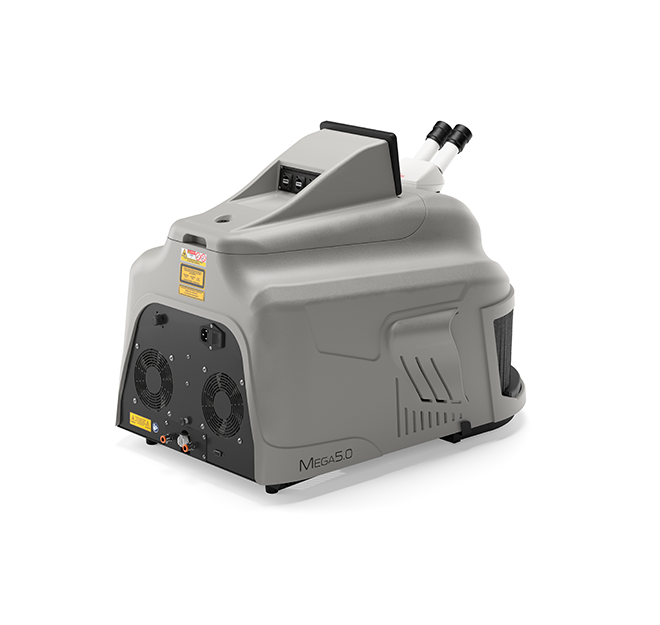

MEGA 5.0

Mega 5.0 and Mega 5.0 3D represent excellence in laser welding for jewelry workshops and industries with medium to large-scale production.

Equipped with a spacious welding chamber and SMSP technology, they ensure precise, uniform, and high-quality welds. The 3D version offers a stereoscopic viewer for superior visual comfort.

The Mega 5.0 is designed to handle welding on objects of various sizes, thanks to its large welding chamber.

The dual cooling system allows intensive use even in high-temperature environments.  SMSP technology ensures precise control of the laser spot diameter, enhancing the quality and consistency of welds.

The Mega 5.0 3D shares all the features of the standard version but is equipped with the 3D Vision stereoscopic viewer.  This eyepiece-free system provides high-resolution viewing, reducing eye strain and improving ergonomics during extended operations.

Request informations

Applications

Request informations
  • Welding of precious metals: gold, platinum, silver, palladium, titanium
  • Repair of antique jewelry and settings with mounted gemstones
  • Repairs on watches, eyeglasses, and other small metal parts
  • Welding with filler materials without the need for post-treatment cleaning
  • Repair of porosity and micro-cracks in castings

High-level performances

  • Laser Source: Nd:Ce:YAG 1064 nm

  • Touchscreen: 7” capacitive display

  • Cooling System: Water and air cooling

  • Gas Inlet: Argon

  • Power Supply: 230 V AC, 50/60 Hz (110 V available on request)

  • Type: Benchtop

  • Warranty: 36 months
Performances

Variations

MEGA 5.0
Laser source and wave lenght
Nd:Ce: YAG 1064 nm
Average power
90 W
Peak power
10 kWp
Max energy
245J
Max frequency Hz
40
Impulse time
0,1 - 25 ms
Spot diameter
0,2 - 2,0 mm
Microspot 0,05 or 0,1 mm
optional
Spot setting
motorized
Wave programs
7 preset pulse shapes
New smsp wave form
yes
Microscope 10X
Leica
3D vision system
Optional
Camera on display
Yes
External control
7" Color Touch Screen
Memories cell stored
100
Hdmi
yes
Water cooling system
double / 4 l
Compressed air noozle
yes
Argon noozle
yes
Type
desktop
Power supply
230 V AC, 50/60 Hz (110 on request) - 2,2 kW
Dimensions cm
58x85x60
Weight kg
43

Related accessories

Table
Steel support table.
Table
Rotating mandrel with through hole

Rotating spindle for circular objects welding

Rotating mandrel with through hole
Covered foot pedal

Covered version foot control

Covered foot pedal
Spot size 0,05 - 0,1 mm

Micro-shot for precision welding

Spot size 0,05 - 0,1 mm
Data logger

RSS remote supervisor system - Connection of all ELETTROLASER machines equipped with Wi-Fi

Data logger
Eyepiece Cover

Removable hygienic covers for laser microscopes

Eyepiece Cover
