OPERA

The first combined laser and CNC machine designed for jewelry: engraving, marking, cutting, and finishing—all in one compact and powerful solution.

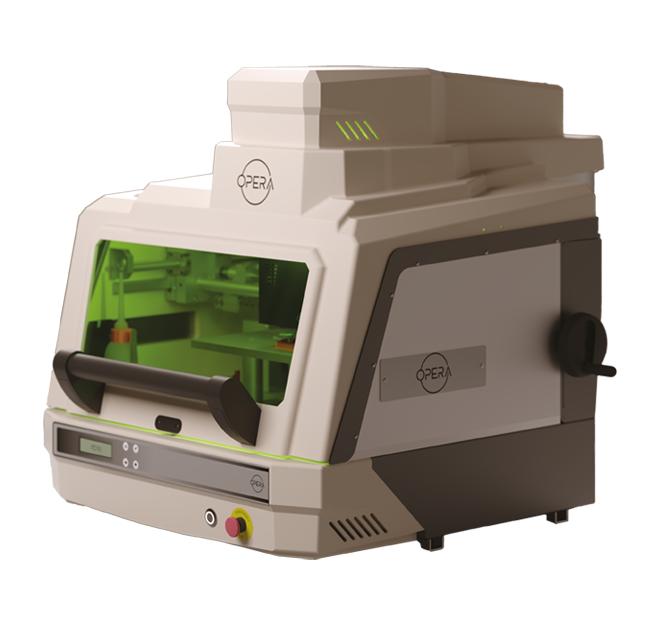

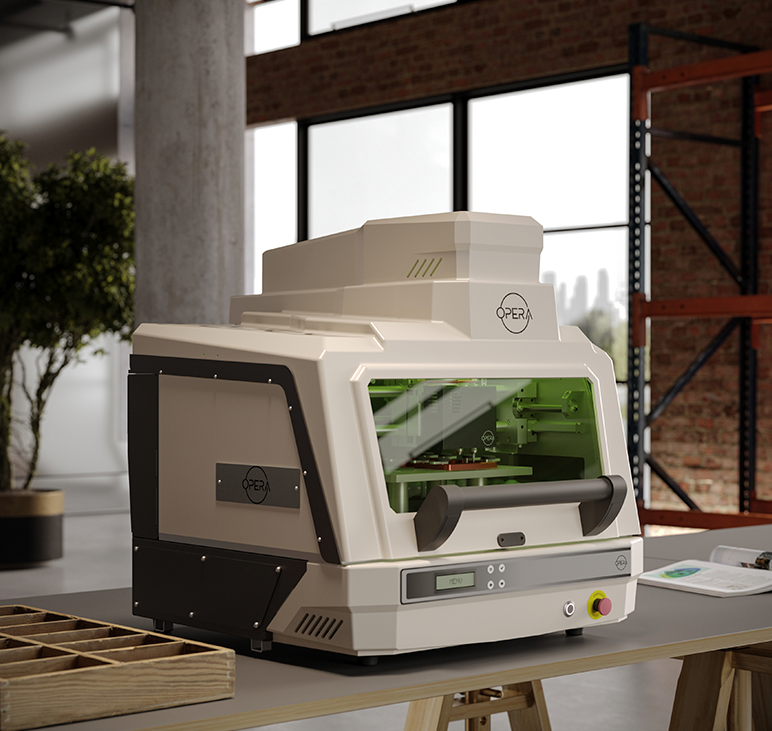

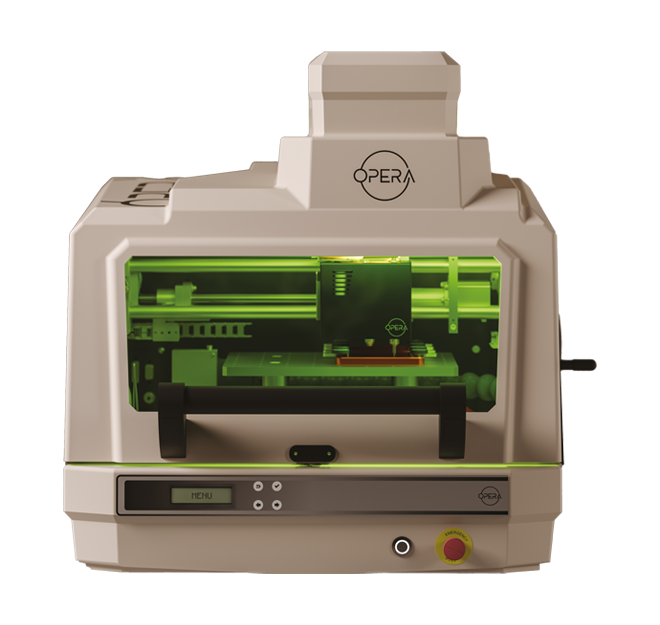

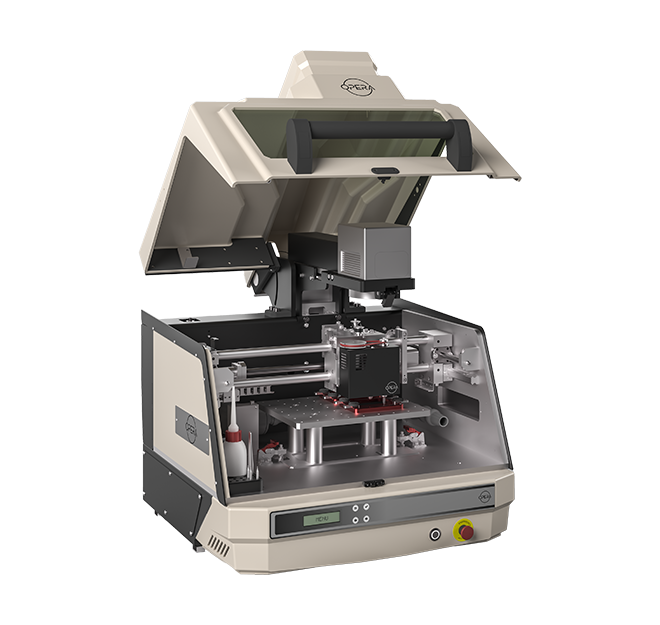

Opera is the hybrid system developed by Elettrolaser that merges the versatility of laser technology with the precision of CNC milling. Designed for modern jewelry workshops, it enables engraving, cutting, diamond-cut finishing, and 3D machining—all in a single, compact machine.

Opera was created to revolutionize jewelry and artisanal production, offering a multifunction machine that combines laser marking and engraving with high-precision CNC milling.

This integrated system allows users to handle a wide range of processes, from shallow or deep engravings to cutting thin sheets, diamond-tool finishing, and polishing, all managed by dedicated software: Opera Easy Creator.

The machine supports various laser formats (including MOPA) and is available with powers ranging from 20W to 60W. The high-speed Galvo head and CNC system with an 18,000 rpm spindle ensure top performance on both metallic and non-metallic materials.

Its compact design and complete set of accessories make it a ready-to-use machine, ideal for both customized production and small high-quality batches.

Request informations

Applications

Request informations
  • Laser marking and engraving on precious and technical metals
  • Cutting and micro-cutting of thin sheets and plates
  • Deep engraving and diamond cutting
  • Precision milling on jewelry and accessories
  • Diamond finishes on curved or flat surfaces
  • Customization of unique pieces with combined effects
  • Prototyping and creation of artistic and customized pieces

High-level performances

  • Combined laser + CNC system in a single machine

  •  Laser source: Nd:YAG 1064 nm – power: 20W / 60W

  •  M² < 1.5 – for high beam quality

  •  High-speed Galvo: up to 5,000 mm/s

  •  CNC spindle: 18,000 RPM

  •  Laser marking area: up to 150 x 150 mm (expandable)

  •  CNC area: 200 x 140 mm – resolution 0.0125 mm (XY) / 0.000625 mm (Z)

  •  Opera Easy Creator software included
Performances

Variations

OPERA -20
Cooling system
air
Type
desktop
Power supply
110/240 V AC, 50/60 Hz (110 on request) - 250 W
Dimensions cm
70x58x59
Weight kg
60
Output power
20 W
Wave lenght
1064 nm
M2
< 1,5
Focal 160: marking area / spot
10x10 cm / 26 um
Speed of Galvo Head
5000 m/s
Max pulse Energy
0,67 mJ
Max frequency kHz
60
Pulse Duration
100 ns
Laser Class
I (IV with drag and clamp optional)
CNC Resoluttion
0,0125 mm (X,Y) / 0,000625 mm (Z)
Spindle Revolution
18000 RPM
Max CNC Working Area
20 x 14 cm
OPERA - 60
Cooling system
air
Type
desktop
Power supply
110/240 V AC, 50/60 Hz (110 on request) - 250 W
Dimensions cm
70x58x59
Weight kg
60
Output power
60 W
Wave lenght
1064 nm
M2
< 1,5
Focal 160: marking area / spot
10x10 cm / 26 um
Speed of Galvo Head
5000 m/s
Max pulse Energy
2 mJ
Max frequency kHz
4000
Pulse Duration
10 - 500 ns
Laser Class
I (IV with drag and clamp optional)
CNC Resoluttion
0,0125 mm (X,Y) / 0,000625 mm (Z)
Spindle Revolution
18000 RPM
Max CNC Working Area
20 x 14 cm

Related accessories

Rotating mandrel with through hole

Rotating spindle for circular objects welding

Rotating mandrel with through hole

Find out more

Laser marking and cutting

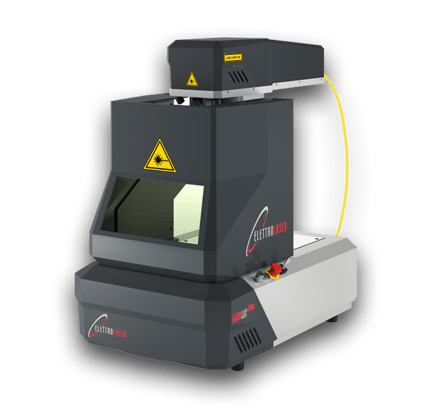

FIBERLUX NANO
