Fiberlux Nano
Fiberlux Nano - Compact and affordable laser marker, ideal for engraving and cutting on precious metals, jewelry components, and small industrial objects. Now also available in a MOPA version for perfect black markings.
Fiberlux Nano - Compact and affordable laser marker, ideal for engraving and cutting on precious metals, jewelry components, and small industrial objects. Now also available in a MOPA version for perfect black markings.

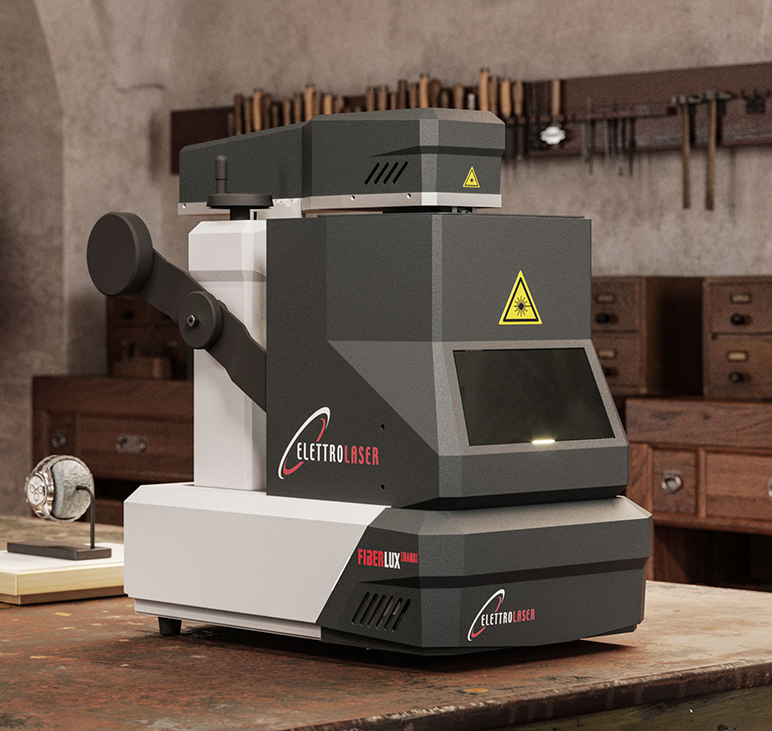

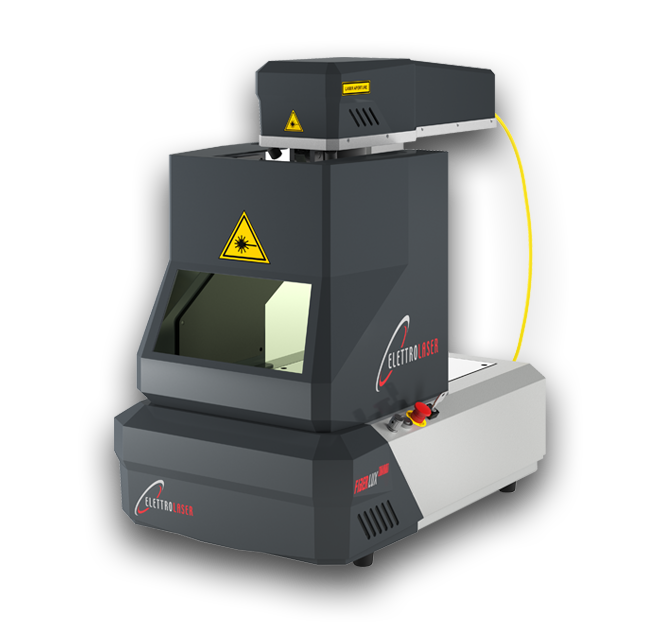

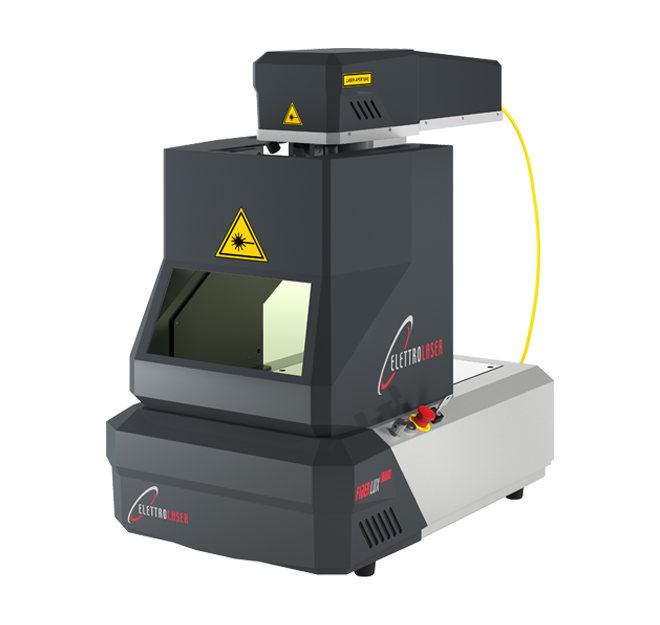

FIBERLUX NANO

Compact and affordable laser marker, ideal for engraving and cutting on precious metals, jewelry components, and small industrial objects. Now also available in a MOPA version for perfect black markings.

Designed for jewelry workshops and artisans who demand precision and ease of use, Fiberlux NANO combines a compact footprint, fiber laser source, and intuitive software for professional engraving on gold, silver, steel, titanium, and more. Available in 30W and 60W MOPA versions, it’s also perfect for high-contrast marking.

Fiberlux NANO is Elettrolaser’s entry-level solution for laser marking, engraving, and micro-cutting on precious and technical metals.
 Compact and user-friendly, it’s designed to meet the needs of artisans, engravers, watchmakers, and small businesses seeking a professional laser system at an accessible price.

The machine integrates a pulsed ytterbium fiber laser source, known for its efficiency and long lifespan (up to 50,000 hours), featuring optimized focus control and an intuitive software interface compatible with common formats (SVG, DXF, JPG, PLT, BMP, etc.).

The 60W MOPA version adds advanced pulse duration control, enabling ultra-precise markings, delicate blackening on stainless steel, and high-end aesthetic finishes without burns or material damage.

With a small footprint and easily accessible work area, Fiberlux NANO is perfect for those looking to enter the world of professional laser marking or expand their production line with a flexible, reliable tool.

Request informations

Applications

  • Laser engraving on gold, silver, steel, titanium, aluminum, and special alloys

  • Customization of jewelry, rings, bracelets, pendants, and watches

  • Marking of logos, designs, text, codes, and trademarks

  • Micro-cutting and deep engraving on metals

  • Precision black marking on stainless steel

  • High-definition photo engraving

  • Curved engravings using rotary axis (optional)

High-level performances

  • Pulsed ytterbium fiber laser source

  • Available powers: 30W / 60W with MOPA technology

  • Wavelength: 1064 nm

  • Manual Z-axis adjustment

  • Marking area: up to 160 x 160 mm

  • Resolution up to 20 μm

  • Pulse duration: 10–100 ns (30W) / 2–500 ns (60W MOPA)

  • Frequency: up to 60 kHz (standard) / 4000 kHz (MOPA)
Performances

Variations

Fiberlux NANO 30
Cooling system
air
Type
desktop
Power supply
230 V AC, 50/60 Hz (110 on request) - 1 kW
Dimensions cm
39,2x65,2x63
Weight kg
35
Output power
30 W
Wave lenght
1064 nm
M2
< 1,8
Working area
25x25
Focal 100: marking area / spot
6x6 cm / 16 um
Focal 160: marking area / spot
10x10 cm / 26 um
Axes Z
manual
Speed of Galvo Head
5000 mm/s
Max pulse Energy
1,5 mJ
Max frequency kHz
60
Pulse Duration
10 - 100 ns
Laser Class
IV
Fiberlux NANO 60
Cooling system
air
Type
desktop
Power supply
230 V AC, 50/60 Hz (110 on request) - 1 kW
Dimensions cm
39,2x65,2x63
Weight kg
35
Output power
60 W
Wave lenght
1064 nm
M2
< 1,8
Working area
25x25
Focal 100: marking area / spot
6x6 cm / 16 um
Focal 160: marking area / spot
10x10 cm / 26 um
Axes Z
manual
Speed of Galvo Head
5000 mm/s
Max pulse Energy
2 mJ
Max frequency kHz
4000
Pulse Duration
2 - 500 ns
Laser Class
IV
