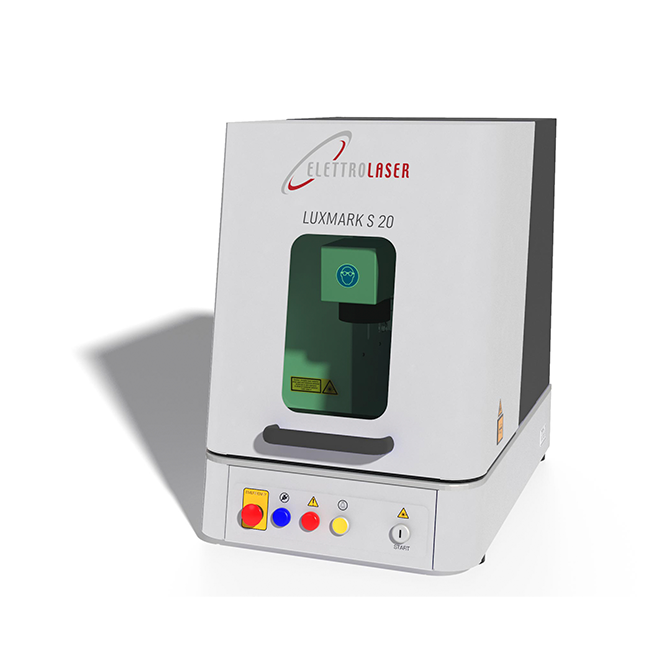

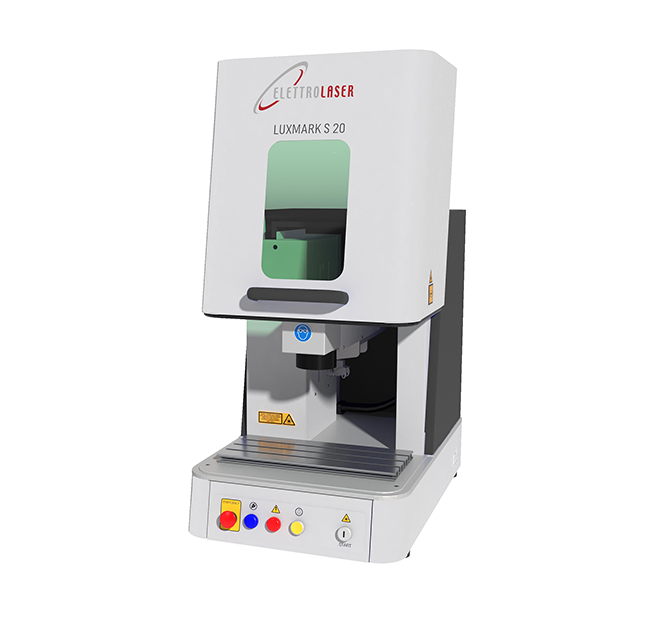

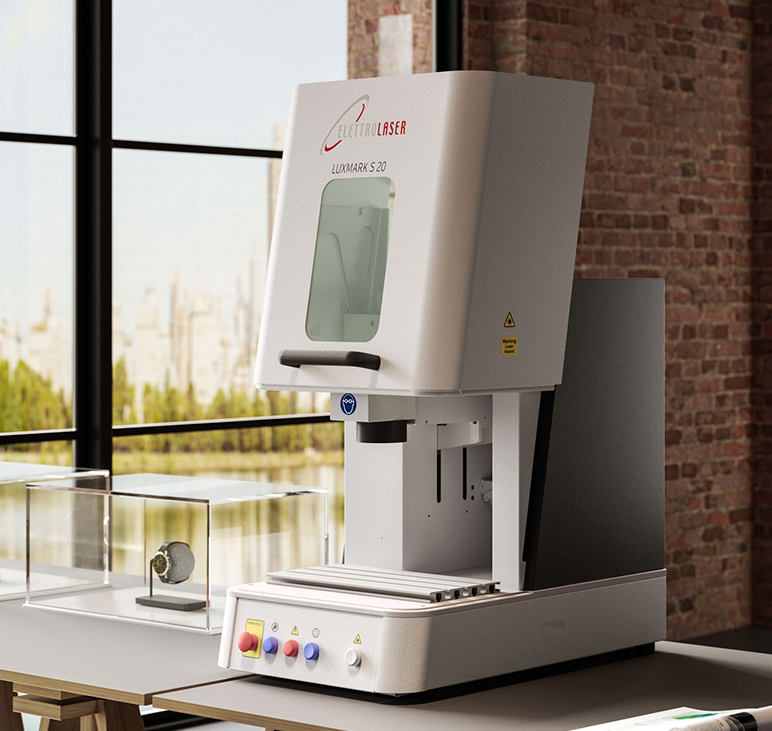

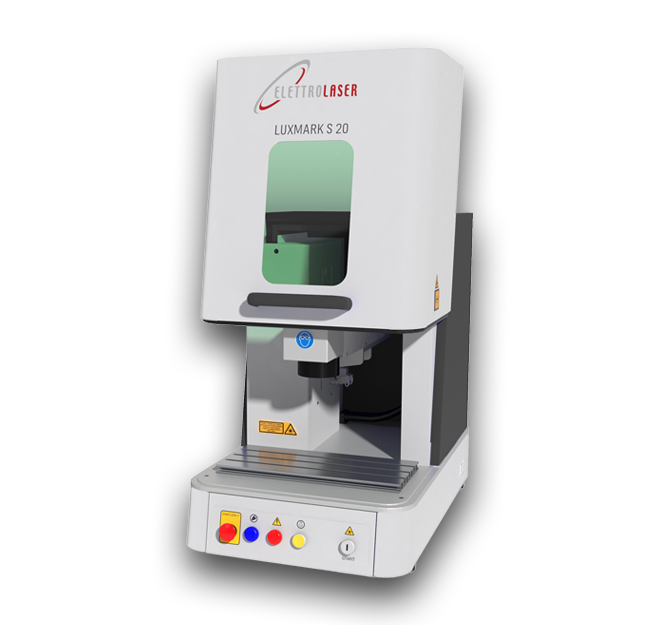

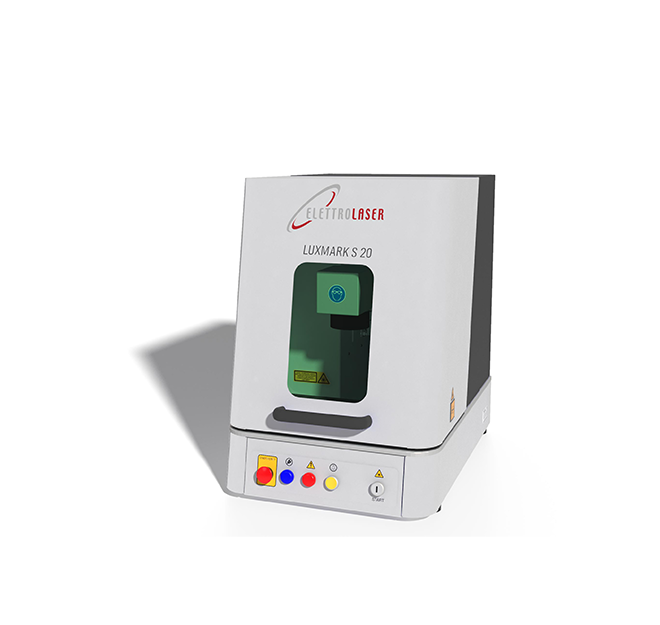

Luxmark S

Professional laser marker with a large working area, advanced software, and a wide range of accessories. Designed for complex customizations and mass production.

Luxmark S is the ideal benchtop laser marker for those who need maximum precision and versatility. Thanks to its spacious work chamber and professional multilingual software, it is perfect for complex engravings, micro-cutting, and processing on metals, alloys, plastics, and other materials.

Designed to meet the needs of manufacturers and artisans requiring high precision, reliability, and automation, Luxmark S represents the ideal solution for detailed and complex work.

The machine features a large marking chamber (450 x 285 mm) and a Z-axis travel of 185 mm, allowing work on objects of varying heights or with additional accessories. It is available in several laser configurations (up to 60W – including MOPA, GREEN, UV) to cover a wide variety of materials and applications.

The provided software is highly professional, customizable, and compatible with all major graphic formats (DXF, DWG, PLT, SVG, AI, BMP, etc.). Thanks to the design optimized for material recovery and the tilted door, user experience is enhanced for the operator.

The machine supports numerous accessories, including XY tables, machine vision, 3D heads, extraction systems, tube marking, and 2.5D machining.

Request informations

Applications

Laser marking and engraving on metals, alloys, plastics, ceramics
Micro-cutting of thin plates and components
Customization of complex or three-dimensional objects
Deep engraving of logos, texts, serial numbers, barcodes
Marking of trademarks and legal symbols on jewelry
Production of tags, medals, and personalized tools
Jewelry, industrial, promotional, and artistic applications
Marking with 2.5D effects and machining on fittings/tubes
Integration into semi-automatic or automated production lines

High-level performances

Large work area: 450 x 285 mm
Z-axis travel: 185 mm, controlled and precise
Available laser powers: 20W / 30W / 50W / 60W (including MOPA, NIB)
Other available sources: GREEN (3–7W), UV (3–7W)
Frequency: up to 4000 kHz
Software: professional, multilingual, customizable
File compatibility: DXF, DWG, SVG, PLT, AI, BMP, JPG, and many more

Variations

Cooling system

Type

Power supply

Dimensions cm

Weight kg

Output power

Wave lenght

Working area

Focal 100: marking area / spot

Focal 160: marking area / spot

Focal 210: marking area / spot

Axes Z

Laser Class

Max Workpiece Height

Luxmark S - UV

Cooling system

air

Type

desktop

Power supply

230 V AC, 50/60 Hz (110 on request) - 1,2 kW

Dimensions cm

48,2x74x70

Weight kg

88*

Output power

3 / 5 / 7 W

Wave lenght

355 nm

Working area

45x28,5

Focal 100: marking area / spot

6x6 cm / 16 um

Focal 160: marking area / spot

10x10 cm / 26 um

Focal 210: marking area / spot

14x14 cm / xx

Axes Z

motorized / 20 cm

Laser Class

Max Workpiece Height

18 cm

Luxmark S - Green

Cooling system

air

Type

desktop

Power supply

230 V AC, 50/60 Hz (110 on request) - 1,2 kW

Dimensions cm

48,2x74x70

Weight kg

88*

Output power

3 / 5 / 7 W

Wave lenght

532 nm

Working area

45x28,5

Focal 100: marking area / spot

6x6 cm / 16 um

Focal 160: marking area / spot

10x10 cm / 26 um

Focal 210: marking area / spot

14x14 cm / xx

Axes Z

motorized / 20 cm

Laser Class

Max Workpiece Height

18 cm

Luxmark S - Fiber

Cooling system

air

Type

desktop

Power supply

230 V AC, 50/60 Hz (110 on request) - 1,2 kW

Dimensions cm

48,2x74x70

Weight kg

88*

Output power

20 / 30 / 50 / 60 W

Wave lenght

1064 nm

Working area

45x28,5

Focal 100: marking area / spot

6x6 cm / 16 um

Focal 160: marking area / spot

10x10 cm / 26 um

Focal 210: marking area / spot

14x14 cm / xx

Axes Z

motorized / 20 cm

Laser Class

Max Workpiece Height

18 cm

Related accessories

2.5D software

The 2.5D software allows marking on flat and curved pieces. The dedicated software automatically creates the sections (layers) set by the operator.

1/12

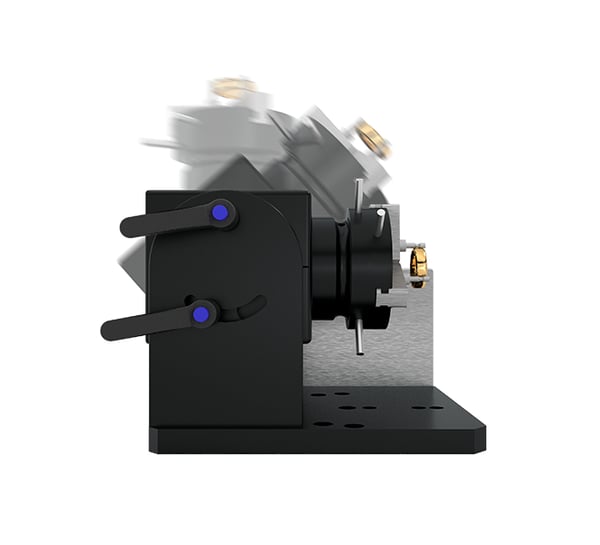

Pneumatic tilting mandrel

The automatic spindle allows for internal and external marking without the assistance of an operator. The dedicated software automatically positions the laser focus as the ring diameters vary.

2/12

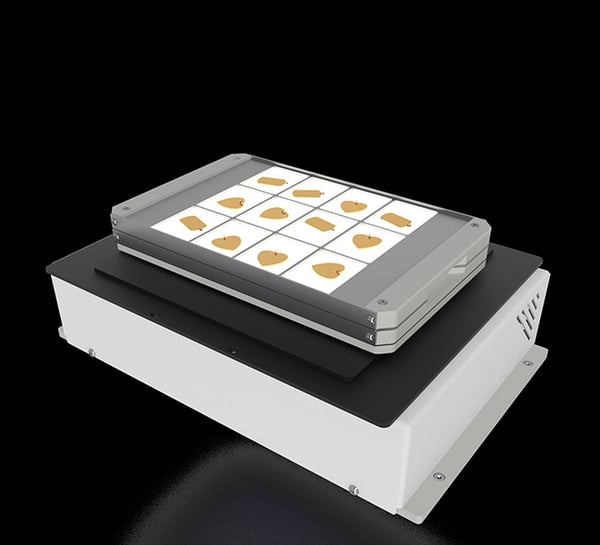

XY table for S

An ideal accessory for automating marking processes without the use of templates. Useful for small to medium production runs.

3/12

Guide plate

A useful accessory for large-scale production of marked and cut objects. It features a special extractor system that keeps the work area clean.

4/12

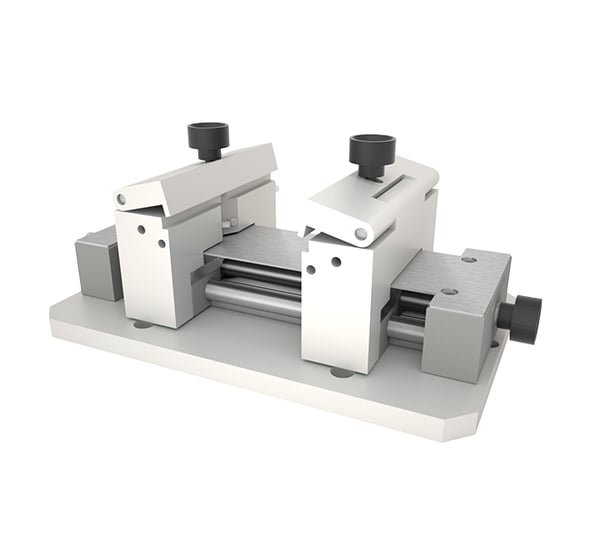

Static vise

The static vise is a useful accessory for holding sheets or round pieces for small production runs. Available in two versions, 100 or 200 mm, it is self-centering with a maximum opening of 100 mm.

5/12

Pattern matching technology

Ideal accessory for centering markings on workpieces. Much more defined than the classic red rectangle. In the MANUAL version, the operator always positions the file on the workpiece. In the AUTOMATIC version, the camera positions the marking file on the workpieces.

6/12

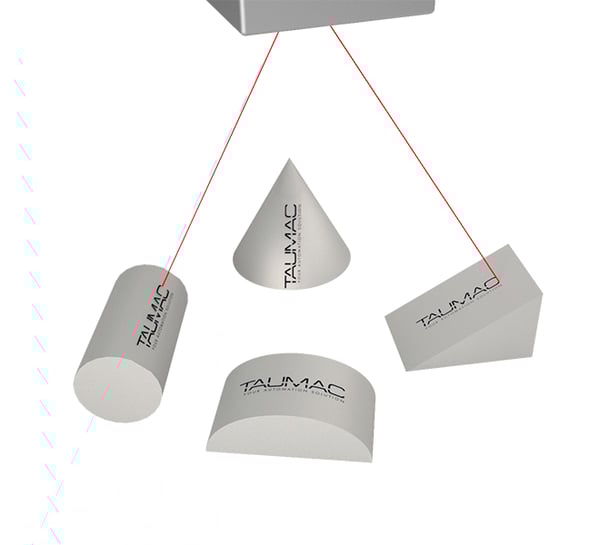

3D marking head

Innovative marking head that, combined with specific 3D software, allows marking on curved surfaces, such as spheres, cones, inclined planes or complex and irregular profiles.

7/12

Tube cutting

Ideal for industrial applications, the tube cutter allows for the precise and automated cutting of tubes of various diameters.

8/12

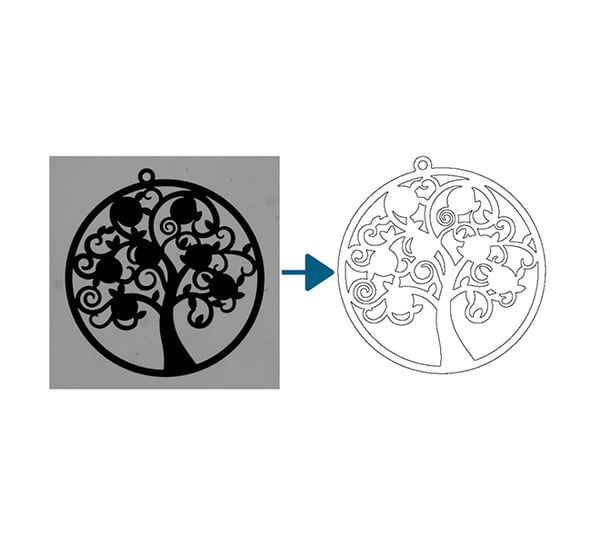

Reverse engineering technology

Accessory used to obtain curves useful for marking and/or cutting on flat objects

9/12

Dynamic height transducer

Indispensable for measuring the height of a piece
Reading value from 40 to 140 mm
Automatically positions the "Z" axis to the detected value for the S, M, and TOP versions. In the S version, however, it only detects the value

10/12
