Luxmark M & TOP

Versatile and modular laser station for deep marking, complex engraving, and precision cutting on metals and technical materials.

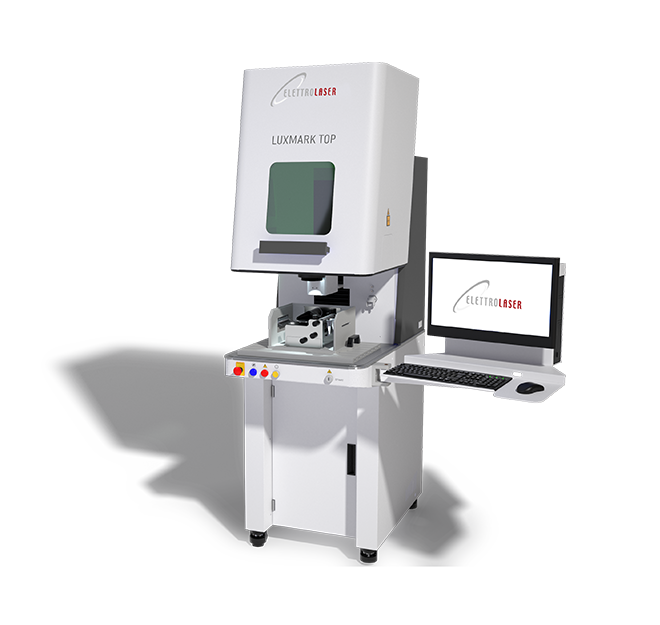

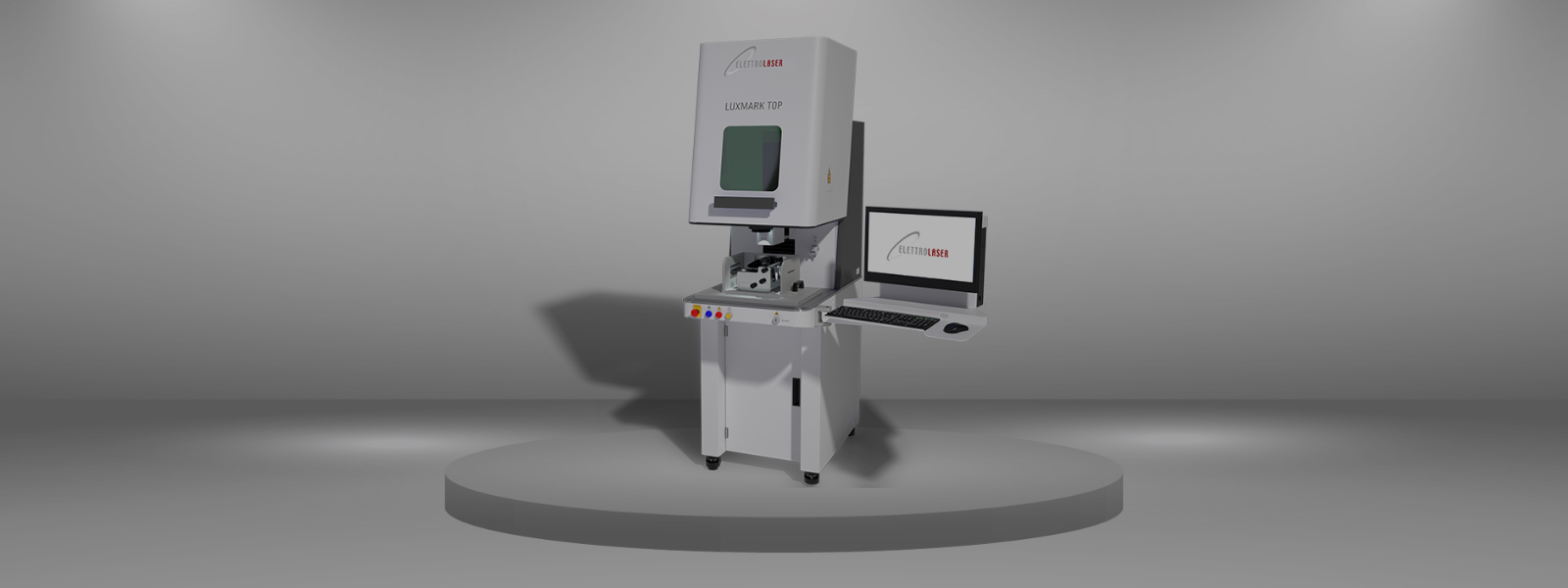

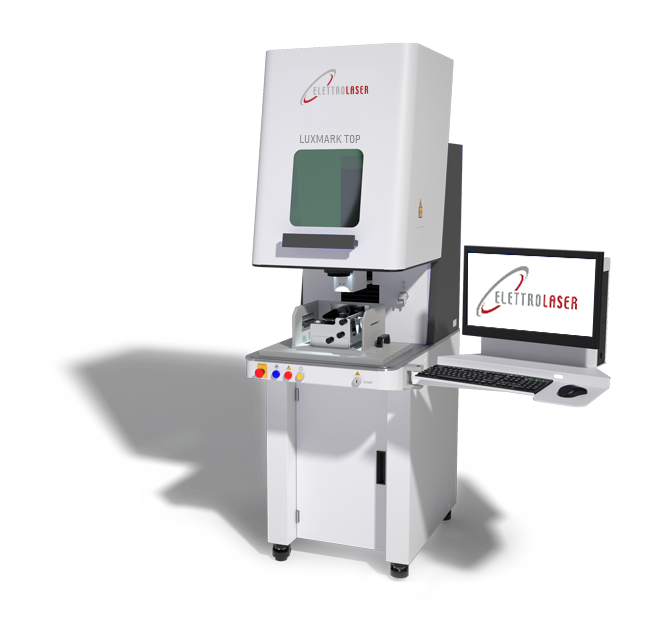

The Luxmark M & TOP is a high-performance benchtop laser system designed for marking, deep engraving, and micro-cutting applications. Thanks to its large work chamber and compatibility with various laser sources (fiber, UV, MOPA, PICO, NIB), it offers maximum flexibility for 2D, 2.5D, and 3D processing on a wide range of materials.

The Luxmark M & TOP is meticulously engineered to meet diverse needs in marking, deep engraving, and cutting.

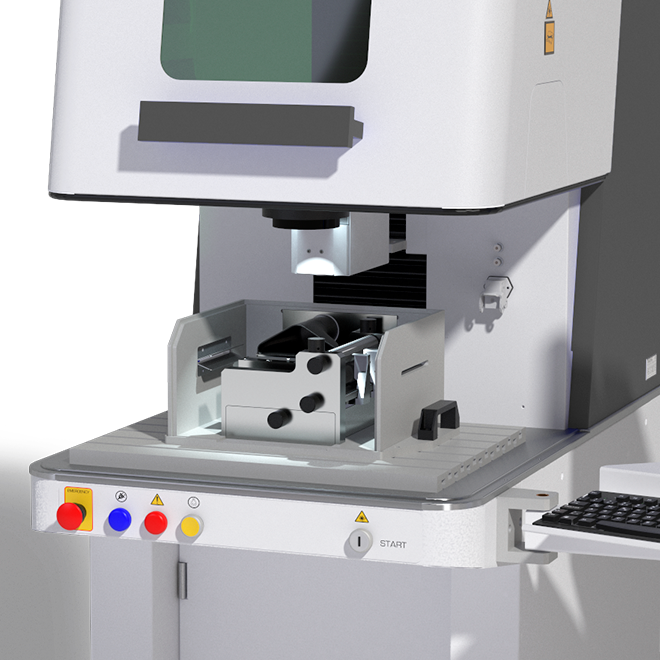

The spacious work chamber allows the use of 3D marking technology for complex shapes and 2.5D for creating cavities or cones for molds. The machine can be paired with a full vision system, making the model even more efficient, productive, and precise, delivering excellent results.

The option to integrate a motorized base allows for comfortable and ergonomic use. The professional multilingual software is configurable by both the operator and the company, supporting import of files in the most common technical and graphic formats.

Request informations

Applications

  • Marking and deep engraving on metals and technical materials
  • Creation of cavities or cones for molds (2.5D)
  • 3D marking on complex shapes
  • Precision micro-cutting
  • Industries: jewelry, medical, automotive, electronics, mechanical

High-level performances

  • Work area: 550 x 500 mm

  •  Z-axis travel: 400 mm, controlled and precise

  •  Software: professional multilingual, configurable, with file import in common formats

  •  Compatibility: 2D, 2.5D, and 3D marking

  •  Extraction system: innovative push-pull for laminar airflow
Performances

Variations

Luxmark M & TOP - Green
Cooling system
air
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 2 kW
Dimensions cm
62x100x170
Weight kg
220*
Output power
3 / 5 / 7 / 10 W
Wave lenght
532 nm
Working area
58x51
Focal 100: marking area / spot
6x6 cm / 16 um
Focal 160: marking area / spot
10x10 cm / 26 um
Focal 210: marking area / spot
14x14 cm / xx
Focal 254: marking area / spot
17x17 / xx
Focal 330: marking area / spot
23x23 cm / XX
Focal 420: marking area / spot
28x28 c,m / xx
Axes Z
motorized / 36 cm
Laser Class
I
Max Workpiece Height
37,5 cm (F160) / 35 cm (3D)
Luxmark M & TOP - Fiber
Cooling system
air
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 2 kW
Dimensions cm
62x100x170
Weight kg
220*
Output power
20 / 30 / 50 / 60 / 70 / 80 / 100 / 200 W
Wave lenght
1064 nm
Working area
58x51
Focal 100: marking area / spot
6x6 cm / 16 um
Focal 160: marking area / spot
10x10 cm / 26 um
Focal 210: marking area / spot
14x14 cm / xx
Focal 254: marking area / spot
17x17 / xx
Focal 330: marking area / spot
23x23 cm / XX
Focal 420: marking area / spot
28x28 c,m / xx
Axes Z
motorized / 36 cm
Laser Class
I
Max Workpiece Height
37,5 cm (F160) / 35 cm (3D)
Luxmark M & TOP - UV
Cooling system
air
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 2 kW
Dimensions cm
62x100x170
Weight kg
220*
Output power
5 / 10 W
Wave lenght
355 nm
Working area
58x51
Focal 100: marking area / spot
6x6 cm / 16 um
Focal 160: marking area / spot
10x10 cm / 26 um
Focal 210: marking area / spot
14x14 cm / xx
Focal 254: marking area / spot
17x17 / xx
Focal 330: marking area / spot
23x23 cm / XX
Focal 420: marking area / spot
28x28 c,m / xx
Axes Z
motorized / 36 cm
Laser Class
I
Max Workpiece Height
37,5 cm (F160) / 35 cm (3D)

Related accessories

Dynamic height transducer
  • Indispensable for measuring the height of a piece
  • Reading value from 40 to 140 mm
  • Automatically positions the "Z" axis to the detected value for the S, M, and TOP versions. In the S version, however, it only detects the value
Dynamic height transducer
Pneumatic tilting mandrel

The automatic spindle allows for internal and external marking without the assistance of an operator. The dedicated software automatically positions the laser focus as the ring diameters vary.

Pneumatic tilting mandrel
XY table for TOP

An ideal accessory for automating marking processes without the use of templates. Useful for small to medium production runs.

XY table for TOP
3D marking head

Innovative marking head that, combined with specific 3D software, allows marking on curved surfaces, such as spheres, cones, inclined planes or complex and irregular profiles.

3D marking head
Guide plate

A useful accessory for large-scale production of marked and cut objects. It features a special extractor system that keeps the work area clean.

Guide plate
Static vise

The static vise is a useful accessory for holding sheets or round pieces for small production runs. Available in two versions, 100 or 200 mm, it is self-centering with a maximum opening of 100 mm.

Static vise
Pattern matching technology

Ideal accessory for centering markings on workpieces. Much more defined than the classic red rectangle. In the MANUAL version, the operator always positions the file on the workpiece. In the AUTOMATIC version, the camera positions the marking file on the workpieces.

Pattern matching technology
2.5D software

The 2.5D software allows marking on flat and curved pieces. The dedicated software automatically creates the sections (layers) set by the operator.

2.5D software
Tube cutting

Ideal for industrial applications, the tube cutter allows for the precise and automated cutting of tubes of various diameters.

Tube cutting
Reverse engineering technology

Accessory used to obtain curves useful for marking and/or cutting on flat objects

Reverse engineering technology
Safety glasses

Safety glasses are mandatory for any work with class IV lasers (open lasers)

Safety glasses
