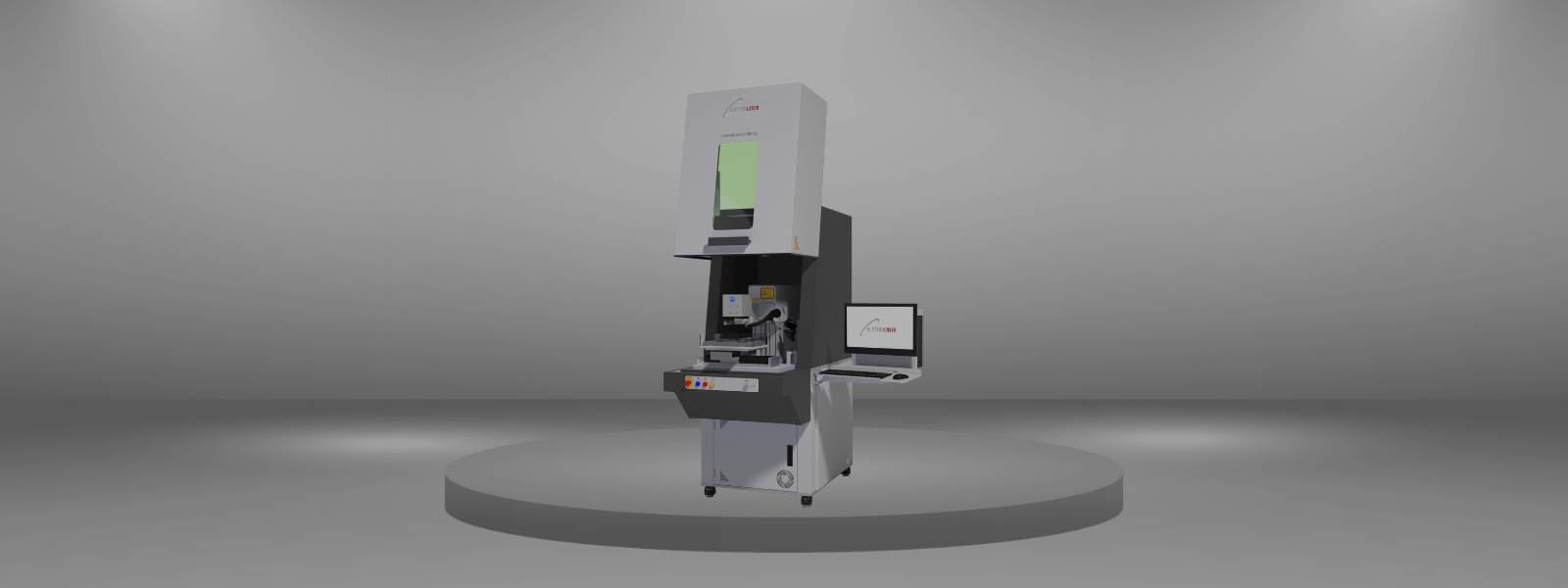

Luxmark M-TOP CO2
Luxmark M-TOP CO2 - High-power CO₂ laser system for clean and controlled cutting of fragile materials such as mother-of-pearl, precious stones, and organic composites.
Luxmark M-TOP CO2 - High-power CO₂ laser system for clean and controlled cutting of fragile materials such as mother-of-pearl, precious stones, and organic composites.

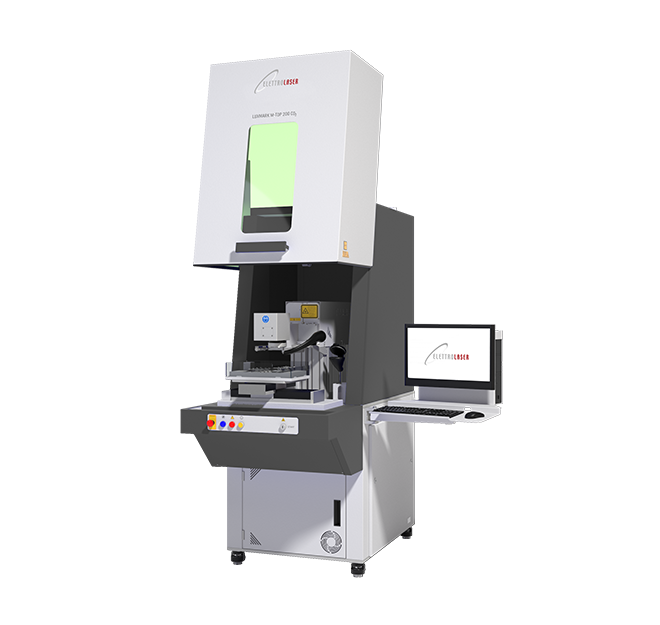

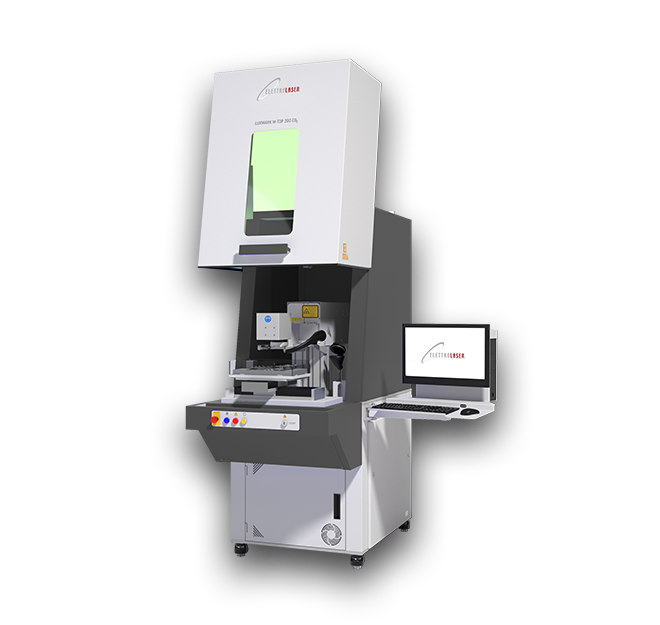

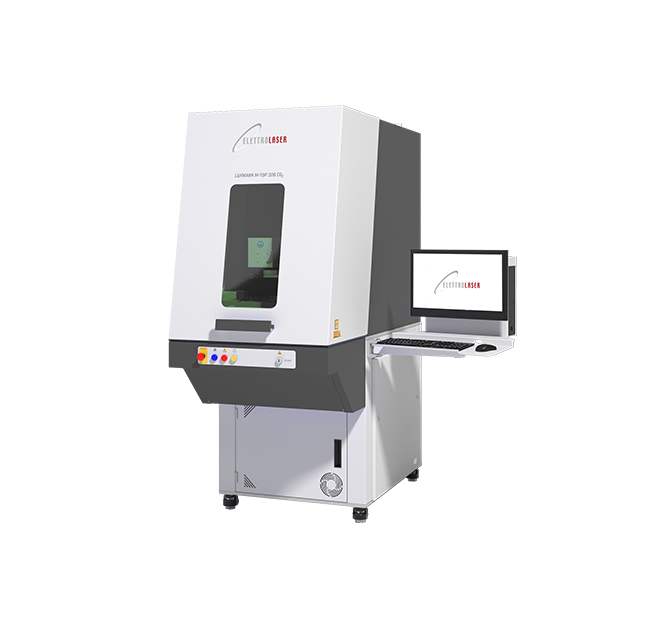

Luxmark M-TOP 200 CO2

High-power CO₂ laser system for clean and controlled cutting of fragile materials such as mother-of-pearl, precious stones, and organic composites.

Luxmark M-TOP 200 CO₂ is a laser machine designed to meet the needs of jewelry workshops and artisans specialized in processing delicate materials like mother-of-pearl. With a 200W CO₂ laser source, it enables fine, precise, and break-free cutting even on very thin sheets.

Luxmark M-TOP 200 CO₂ model was created in response to a specific market demand: the need to cut mother-of-pearl and other fragile or precious materials cleanly, quickly, and without damage.

Thanks to its 200W CO₂ laser source, this machine allows extremely controlled processing of non-metallic, organic, and semi-precious materials. It is particularly valued in jewelry making, artistic craftsmanship, and the production of components for watches, musical instruments, jewelry, and luxury accessories.

The compact benchtop structure is paired with an intuitive interface and professional multi-format software, capable of managing even complex projects with delicate geometries.

Request informations

Applications

  • Cutting mother-of-pearl with smooth finish and thin margins
  • Cutting and engraving on hard stones, semi-precious stones, and minerals
  • Cutting fragile materials (shell, bone, synthetic ivory, horn)
  • Artistic processing on thin wood, paper, leather, and plastic
  • Production of decorative inlays for watches, jewelry, and high-end accessories
  • Industries: jewelry, luthiery, fashion accessories, precision craftsmanship

High-level performances

  • Water-cooled CO₂ laser source – 200W power

  • Wavelength: 10,600 nm (ideal for organic and mineral materials)

  • High cutting precision: sharp edges, no burning

  • Integrated cooling system for maximum stability

  • Control via professional software, compatible with major vector formats (DXF, PLT, SVG, AI, etc.)
Performances

Variations

Luxmark M & TOP 200 CO2
Cooling system
air
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 3 kW
Dimensions cm
80x160x195
Weight kg
350*
Wave lenght
10600 nm
Working area
77x49
Focal 150: marking area / spot
6x6 cm / xx
Axes Z
motorized
Laser Class
I
Max Workpiece Height
15,5 cm

Related accessories

Dynamic height transducer
  • Indispensable for measuring the height of a piece
  • Reading value from 40 to 140 mm
  • Automatically positions the "Z" axis to the detected value for the S, M, and TOP versions. In the S version, however, it only detects the value
Dynamic height transducer
3D marking head

Innovative marking head that, combined with specific 3D software, allows marking on curved surfaces, such as spheres, cones, inclined planes or complex and irregular profiles.

3D marking head
Pneumatic tilting mandrel

The automatic spindle allows for internal and external marking without the assistance of an operator. The dedicated software automatically positions the laser focus as the ring diameters vary.

Pneumatic tilting mandrel

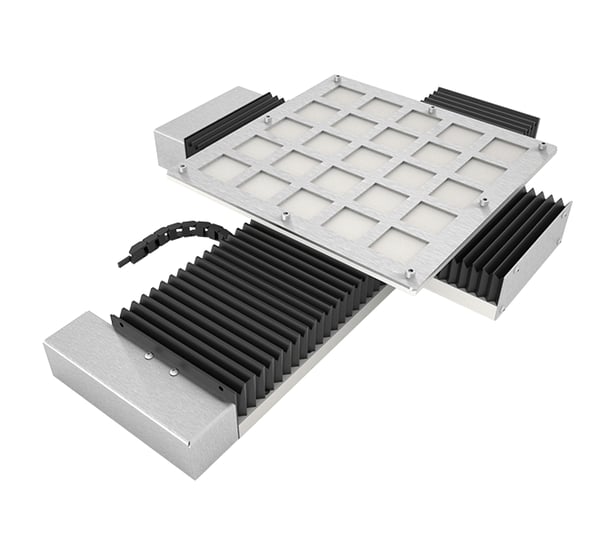

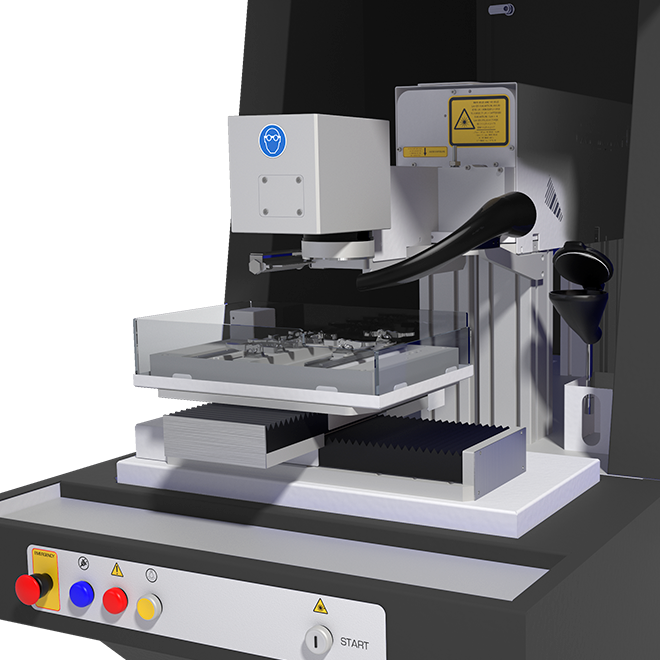

XY table for TOP

An ideal accessory for automating marking processes without the use of templates. Useful for small to medium production runs.

XY table for TOP
Guide plate

A useful accessory for large-scale production of marked and cut objects. It features a special extractor system that keeps the work area clean.

Guide plate
Static vise

The static vise is a useful accessory for holding sheets or round pieces for small production runs. Available in two versions, 100 or 200 mm, it is self-centering with a maximum opening of 100 mm.

Static vise
Pattern matching technology

Ideal accessory for centering markings on workpieces. Much more defined than the classic red rectangle. In the MANUAL version, the operator always positions the file on the workpiece. In the AUTOMATIC version, the camera positions the marking file on the workpieces.

Pattern matching technology
2.5D software

The 2.5D software allows marking on flat and curved pieces. The dedicated software automatically creates the sections (layers) set by the operator.

2.5D software
Tube cutting

Ideal for industrial applications, the tube cutter allows for the precise and automated cutting of tubes of various diameters.

Tube cutting
Reverse engineering technology

Accessory used to obtain curves useful for marking and/or cutting on flat objects

Reverse engineering technology
Safety glasses

Safety glasses are mandatory for any work with class IV lasers (open lasers)

Safety glasses

Find out more

Laser marking and cutting

Luxmark M & TOP

  • Laser source: Fibra | Green | UV | CO2
  • Laser class: I
  • Z-axis: Motorizzato
  • Workpiece height: max 35 - 37,5 cm
Find out more
