MegaHit 300

Power and precision for welding precious and reflective metals — ideal for intensive production and industrial applications.

The MegaHIT 300 is the ultimate solution for laser welding difficult metals such as silver, thanks to its dual in-line resonator and upgraded capacitor bank delivering up to 300 J of effective energy. Designed for intensive use, it features an integrated cooling system and a large welding chamber, making it perfect for industrial environments and jewelry manufacturing facilities with high production demands.

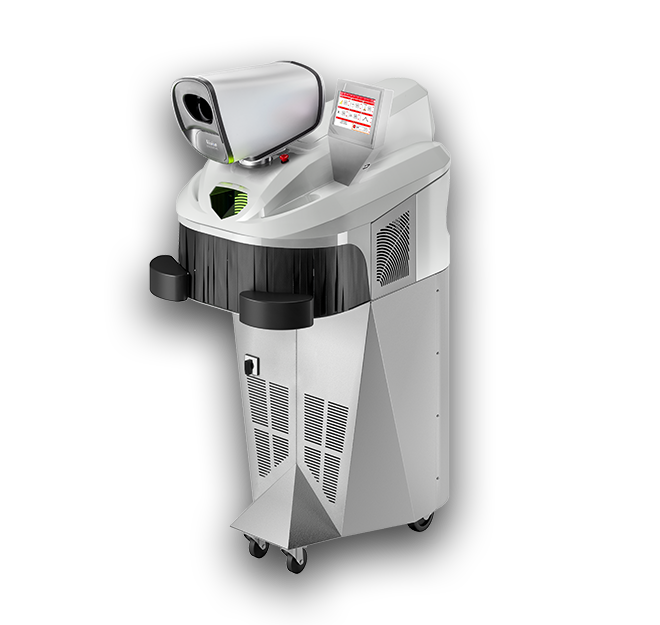

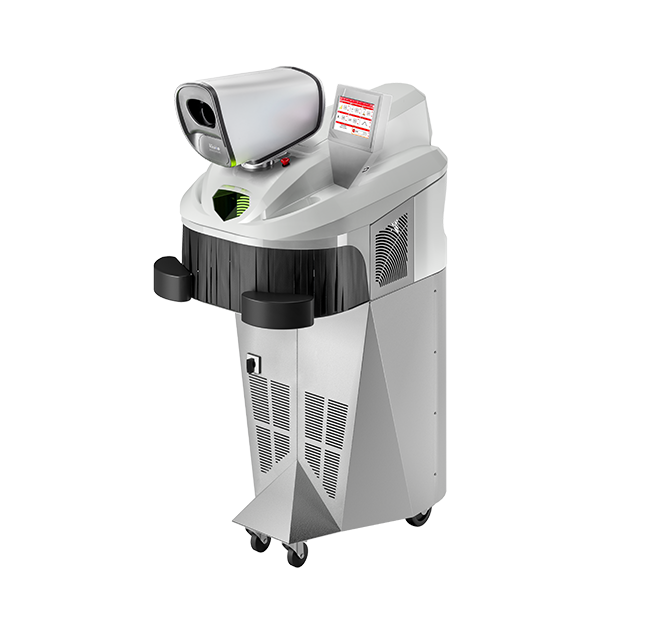

The MegaHIT 300 represents the pinnacle of laser welding for precious and reflective metals.
Equipped with a dual in-line laser resonator and a reinforced capacitor bank, this machine delivers significantly higher power than standard systems, making the welding of notoriously difficult materials like silver easier and more reliable.

The cooling system, integrated into the pedestal and entirely developed by ElettroLaser, ensures intensive and continuous operation without overheating, increasing both productivity and system longevity.

The large welding chamber with a lower opening allows for the processing of bulky and large-sized pieces, offering maximum flexibility in industrial contexts.
The 7” color touchscreen, paired with an integrated camera, allows for precise control and real-time visualization of welding operations.

Request informations

Applications

  • Welding of precious metals: platinum, titanium, gold, silver, and palladium
  • Repair of watches, eyeglasses, and small metal parts
  • Welding with filler material without the need for post-weld cleaning
  • Repair of casting defects such as porosity or fractures
  • Repair of molds and industrial components
  • Welding of areas that are difficult to reach using traditional techniques

High-level performances

  • Laser Source: 2x Nd:Ce:YAG 1064 nm

  • Average Power: 300 W

  • Peak Power: 15 kWp

  • Pulse Energy: up to 300 J
Performances

Variations

MEGAHIT 300
Laser source and wave lenght
2xNd:Ce: YAG 1064 nm
Average power
300 W
Peak power
15 kWp
Max energy
300J
Max frequency Hz
50
Impulse time
0,1 - 20 ms
Spot diameter
0,2 - 2,0 mm
Microspot 0,05 or 0,1 mm
optional
Spot setting
motorized
Wave programs
7 preset pulse shapes
New smsp wave form
yes
New gaussian smooth spot
yes
Microscope 10X
Leica
3D vision system
Optional
Camera on display
Yes
External control
7" Color Touch Screen
Memories cell stored
100
Hdmi
yes
Water cooling system
double - enforced / 6 l
Compressed air noozle
yes
Argon noozle
yes
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 4,4 kW
Dimensions cm
55x92,3x126,7
Weight kg
85

Related accessories

Table
Steel support table.
Table
Rotating mandrel with through hole

Rotating spindle for circular objects welding

Rotating mandrel with through hole
Covered foot pedal

Covered version foot control

Covered foot pedal
Spot size 0,05 - 0,1 mm

Micro-shot for precision welding

Spot size 0,05 - 0,1 mm
Data logger

RSS remote supervisor system - Connection of all ELETTROLASER machines equipped with Wi-Fi

Data logger
Eyepiece Cover

Removable hygienic covers for laser microscopes

Eyepiece Cover

Find out more

Die repair

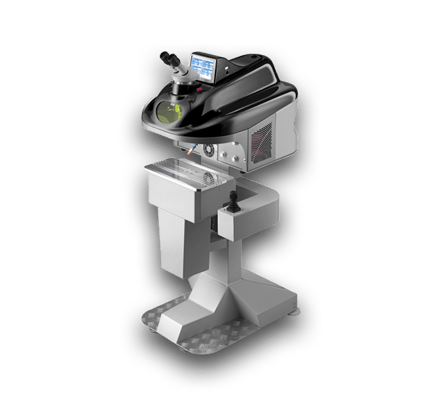

AWL

  • Average power (Watts): 90
  • Peak power (kWp): 10
  • Maximum energy (Joules): 245
  • Frequency (Hz): 0,5 - 30 Hz
Find out more
