AWL

Precision laser welding with motorized table and joystick control: the ideal solution for repairing small molds and mechanical components.

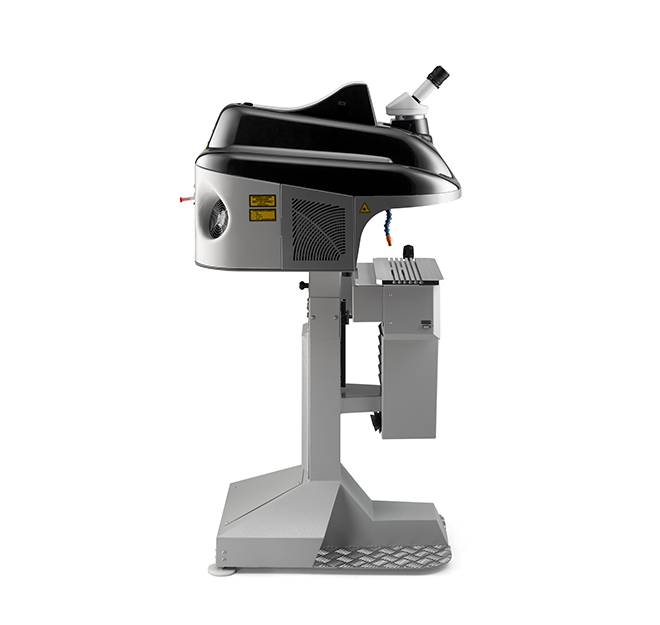

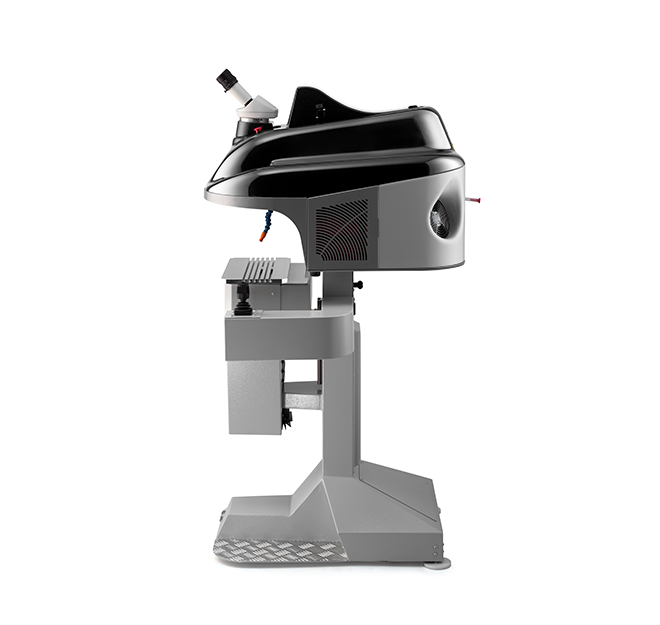

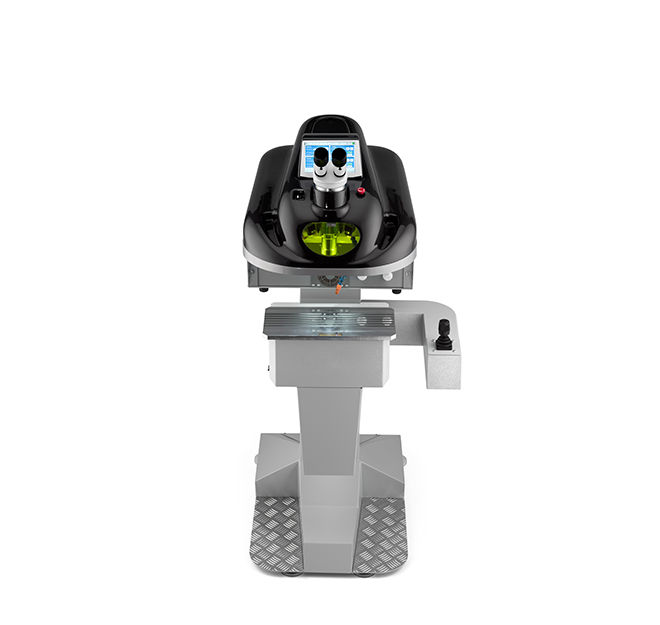

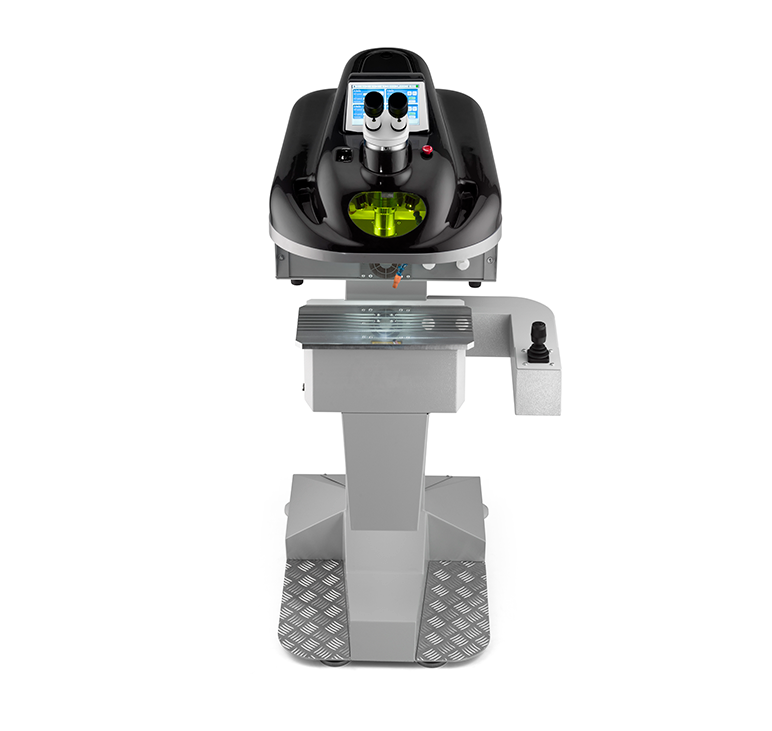

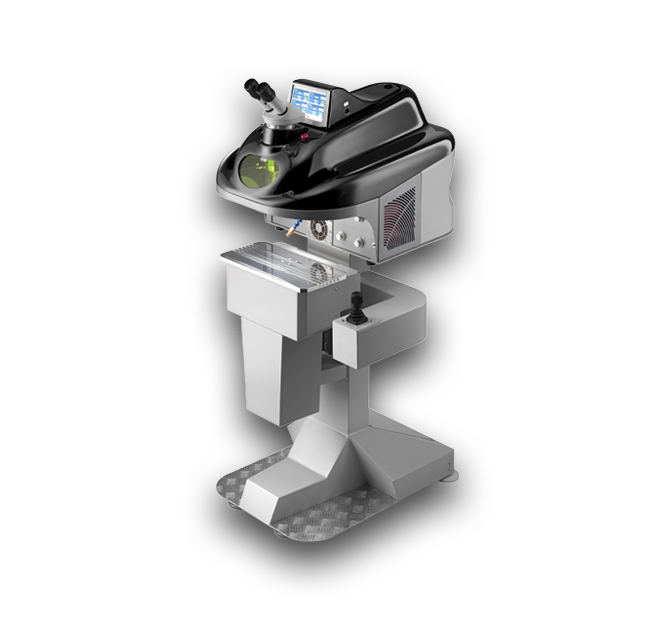

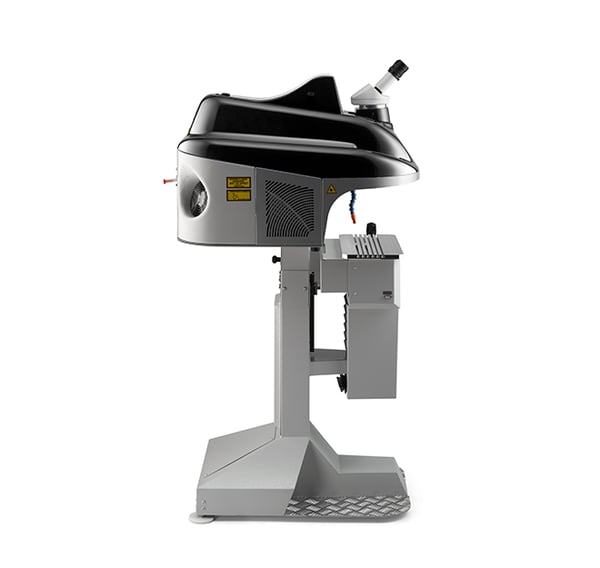

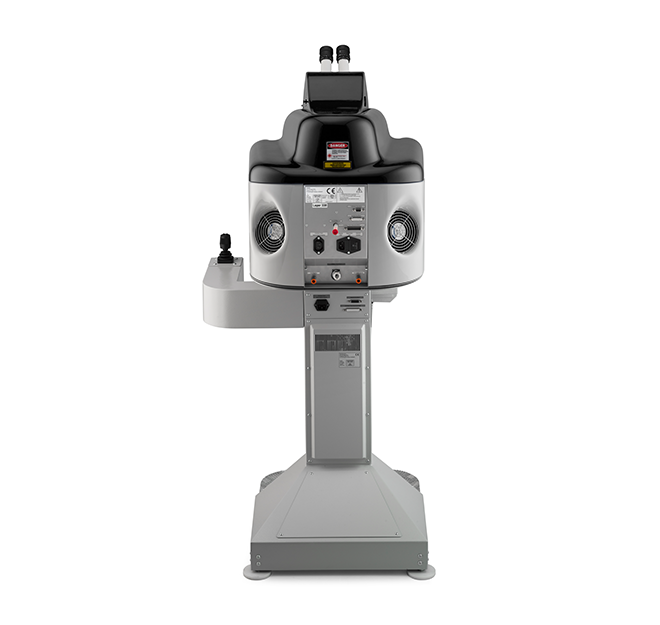

AWL is an automatic laser welder designed for repairing small molds, dies, and mechanical components. Equipped with a motorized three-axis (X-Y-Z) table controlled via joystick, it offers precision and accuracy in welding, even in hard-to-reach areas.

AWL is an automatic laser welder ideal for applications requiring high precision, such as the repair of small molds and mechanical components.

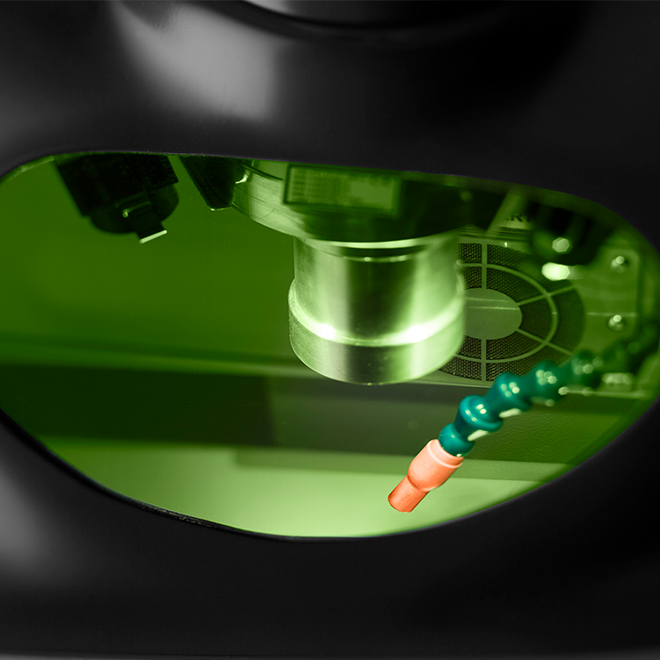

The motorized three-axis table, controlled by joystick, allows for accurate welds even in difficult-to-access areas. The machine features a fully open welding chamber suitable for bulky parts, and an integrated webcam displaying operations directly on the 7" LCD screen.

Wi-Fi connectivity enables remote parameter setting, while USB and HDMI connections are available as optional extras. The G-CODE version allows programming and automatic execution of welding paths, ideal for intensive industrial production.

Request informations

Applications

  • Repair and restoration of plastic molds
  • Repair of mechanical parts
  • Welding of parts using filler material
  • Welding of thermo/mechanical components
  • Wear restoration on small molds
  • Automatic welding of preset paths
  • Restoration of worn edges
  • Filling of grooves and channels
  • Various types of micromechanical part repairs


High-level performances

  • Laser source: Nd:Ce:YAG – 1064 nm

  • Average power: 80 W

  • Peak power: 7 kW

  • Pulse energy: up to 140 J

  • XYZ table travel: 150 x 100 x 210 mm

  • Maximum load: 35 kg

  • Table dimensions: 190 x 399 mm

  • Welding chamber: fully open
Performances

Variations

AWL
Laser source and wave lenght
Nd:Ce: YAG 1064 nm
Average power
90 W
Peak power
10 kWp
Max energy
245J
Max frequency Hz
40
Impulse time
0,1 - 25 ms
Spot diameter
0,2 - 2,0 mm
Microspot 0,05 or 0,1 mm
optional
Spot setting
motorized
Wave programs
7 preset pulse shapes
New smsp wave form
yes
Microscope 10X
Leica
3D vision system
Optional
Camera on display
Yes
External control
7" Color Touch Screen
Memories cell stored
100
Hdmi
yes
Water cooling system
double / 4 l
Compressed air noozle
yes
Argon noozle
yes
Type
desktop
Power supply
230 V AC, 50/60 Hz (110 on request) - 2,2 kW
Dimensions cm
58x85x92,3
Weight kg
95
Axis stroke
X: 11cm; Y: 8,8cm; Z: 19,5cm

Related accessories

Rotating mandrel with through hole

Rotating spindle for circular objects welding

Rotating mandrel with through hole
Covered foot pedal

Covered version foot control

Covered foot pedal
Spot size 0,05 - 0,1 mm

Micro-shot for precision welding

Spot size 0,05 - 0,1 mm
Data logger

RSS remote supervisor system - Connection of all ELETTROLASER machines equipped with Wi-Fi

Data logger
Eyepiece Cover

Removable hygienic covers for laser microscopes

Eyepiece Cover

Find out more

Die repair

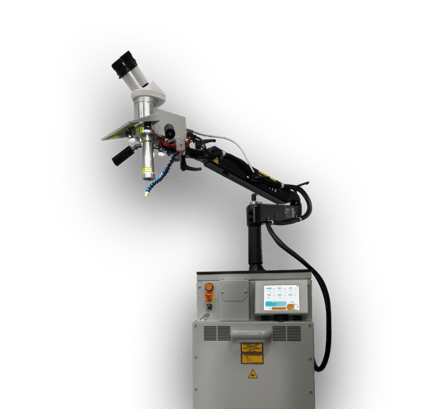

Combo 200
