DL 200

Precision, power, and versatility for laser welding of molds and large objects: the DL 200 is the ultimate solution for complex and hard-to-reach workpieces.

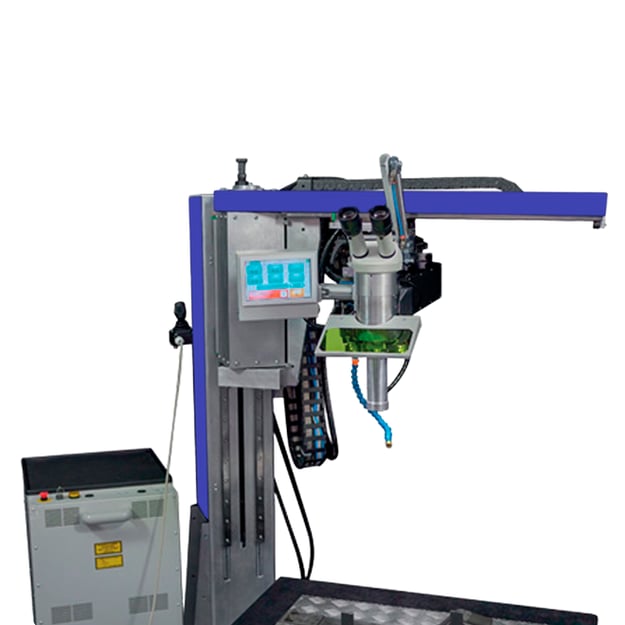

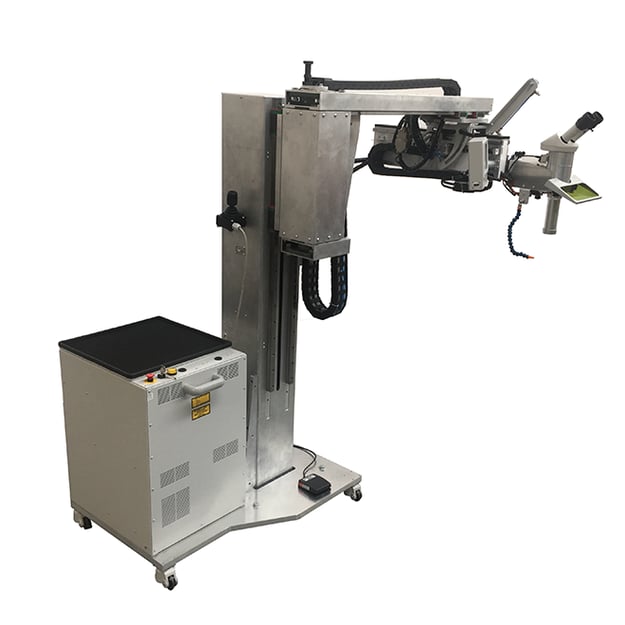

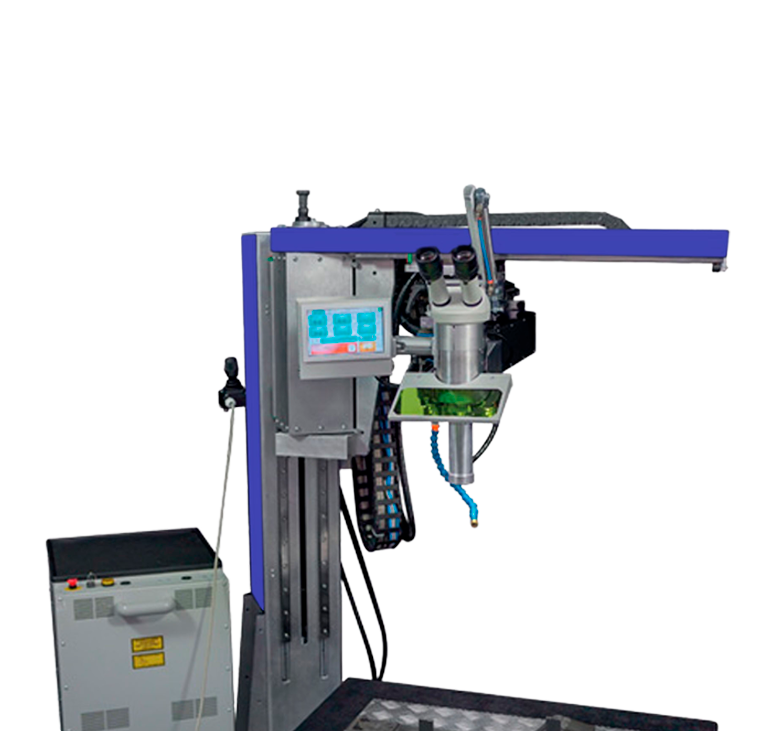

DL 200 is a floor-standing laser welder designed for large-scale industrial applications. Equipped with motorized movement on three axes (X-Y-Z), a two-axis orientable arm, and a dual resonator, it is ideal for repairing molds and large industrial components, even in difficult-to-access areas.

Specifically designed for the industrial sector and mold repair, DL 200 combines high power, a wide working area, and maximum positioning precision.

This machine integrates a dual Nd:Ce:YAG laser resonator capable of generating pulses up to 200 J and a peak power of 10 kW, ideal for structural welds or welding on highly reflective materials. The motorized three-axis movement system (X, Y, Z) is controlled via joystick, while the welding arm is tiltable and rotatable on two axes, allowing interventions even on complex surfaces or areas inaccessible with standard systems.

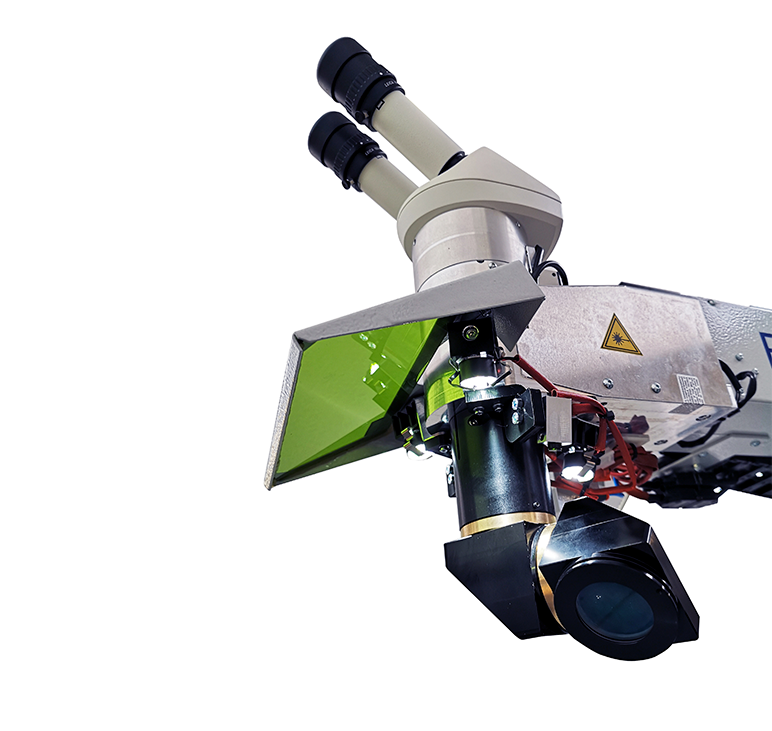

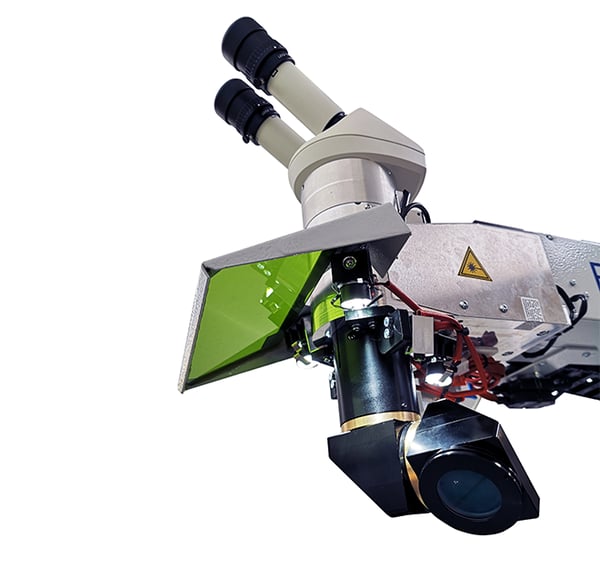

The integrated high-resolution camera, together with the ease of use of the touch screen and parameter memory, completes a system designed for continuous productivity without sacrificing detail control.

Request informations

Applications

  • Repair of plastic or metal injection molds
  • Structural welding on large parts
  • Precision micro-repairs in cavities or internal areas
  • Sealing of porosity and cracks on castings
  • Maintenance of industrial components
  • Welding on reflective materials such as aluminum and copper
  • Industries: automotive, mold making, aerospace, tooling


High-level performances

  • Laser source: dual Nd:Ce:YAG – 1064 nm

  • Average power: 140 W

  • Peak power: 10 kW

  • Pulse energy: up to 200 J

  • Spot diameter: 0.2 ÷ 2.0 mm

  • XYZ axis control: motorized with joystick

  • Axis travel: X = 500 mm, Y = 405 mm, Z = 600 mm

  • Two-axis orientable arm (rotation + tilt)

  • Operator interface: joystick + 7” touch screen
Performances

Variations

DL 200
Laser source and wave lenght
2xNd:Ce: YAG 1064 nm
Average power
140 W
Peak power
15 kWp
Max energy
200J
Max frequency Hz
30
Impulse time
0,5 - 20 ms
Spot diameter
0,2 - 2,0 mm
Spot setting
motorized
Wave programs
7 preset pulse shapes
New smsp wave form
yes
New gaussian smooth spot
yes
Microscope 10X
Leica
Memories cell stored
100
Water cooling system
double - enforced / 8 l
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 4,4 kW
Dimensions cm
109x93x149
Weight kg
95
Axis stroke
X: 50cm; Y: 40,5 cm; Z: 60 cm
