DaDo - The ideal solution for those starting out with laser welding: compact, affordable, and ready to use, also available in the 2.0 version with enhanced performance.
DaDo - The ideal solution for those starting out with laser welding: compact, affordable, and ready to use, also available in the 2.0 version with enhanced performance.
DaDo - The ideal solution for those starting out with laser welding: compact, affordable, and ready to use, also available in the 2.0 version with enhanced performance.

DaDo DaDo 2.0

The ideal solution for those starting out with laser welding: compact, affordable, and ready to use, also available in the 2.0 version with enhanced performance.

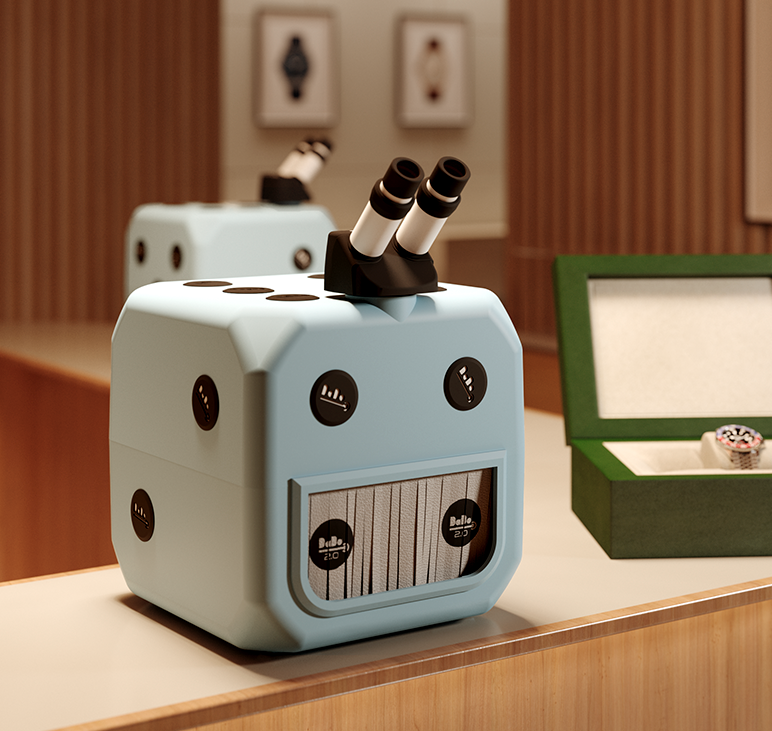

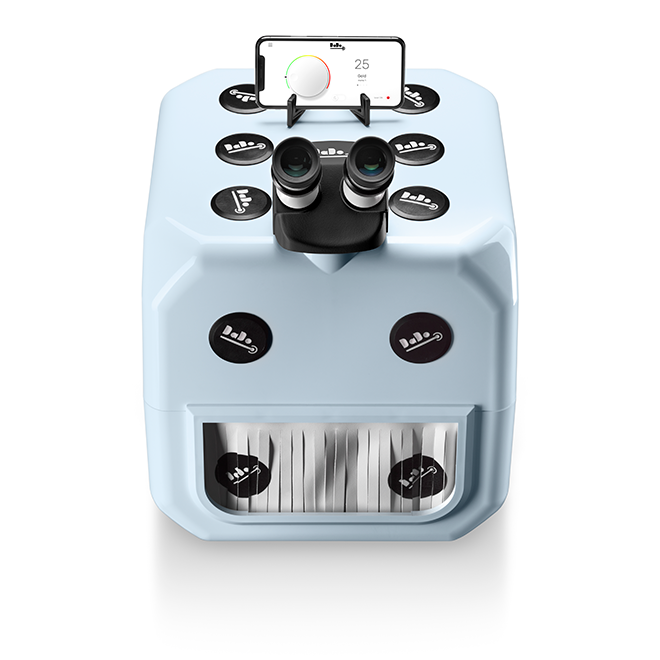

Dado is the compact laser welder designed for small jewelry and dental workshops looking to enter the world of laser micro-welding with a simple, reliable tool featuring a minimalist design. Dado 2.0, the evolution of the original model, offers higher power, an improved interface, and advanced features such as continuous firing mode.

Dado and Dado 2.0 are Elettrolaser’s benchtop laser welders dedicated to users seeking an entry-level yet professional solution for performing precise welds on precious metals and dental alloys.

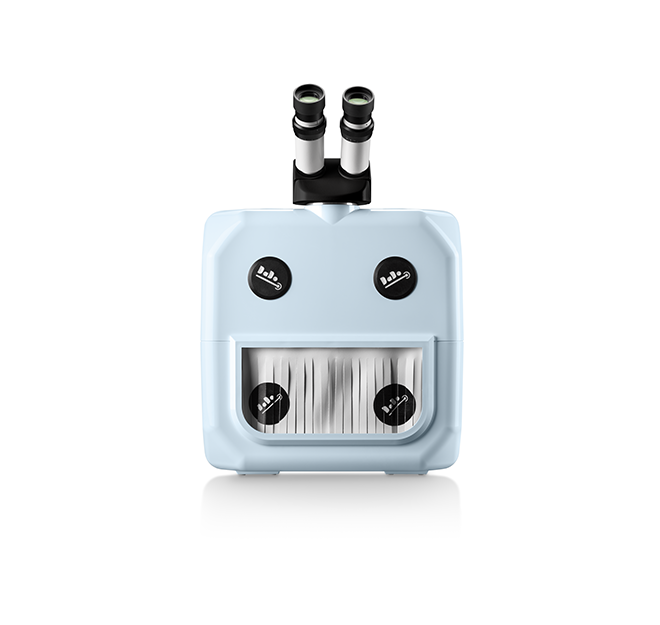

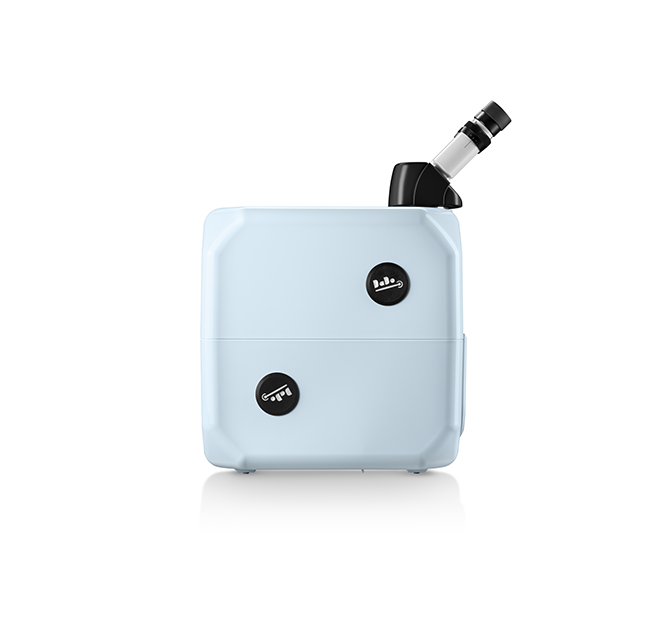

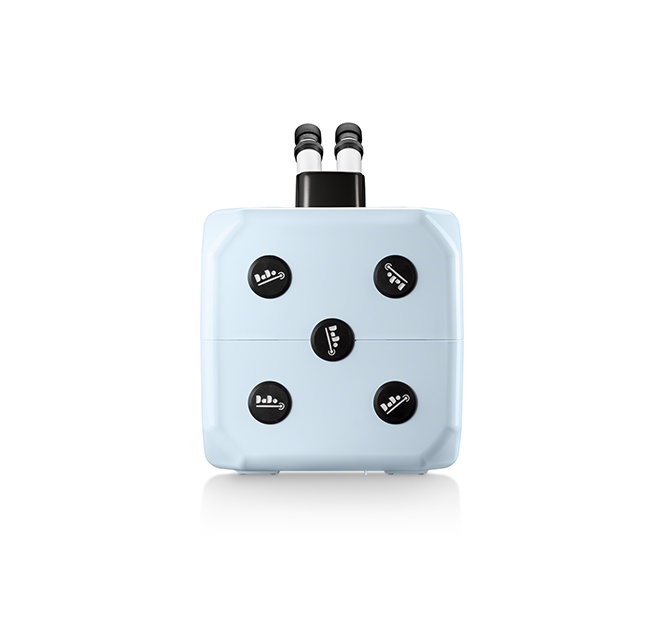

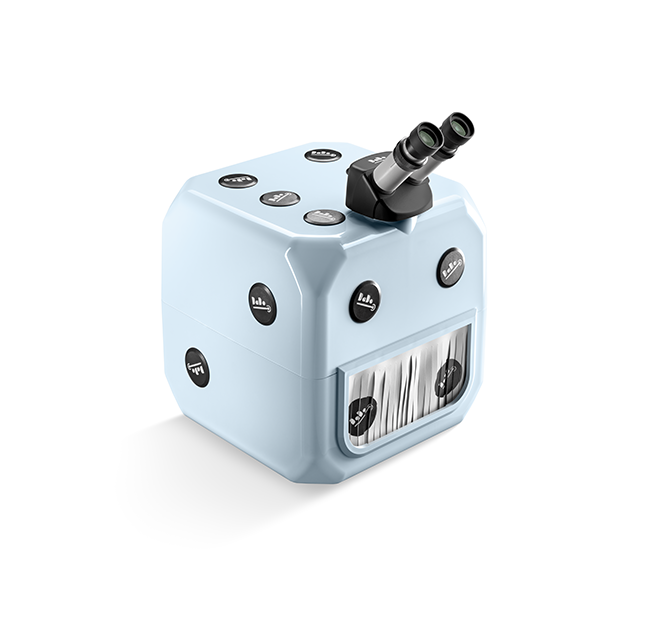

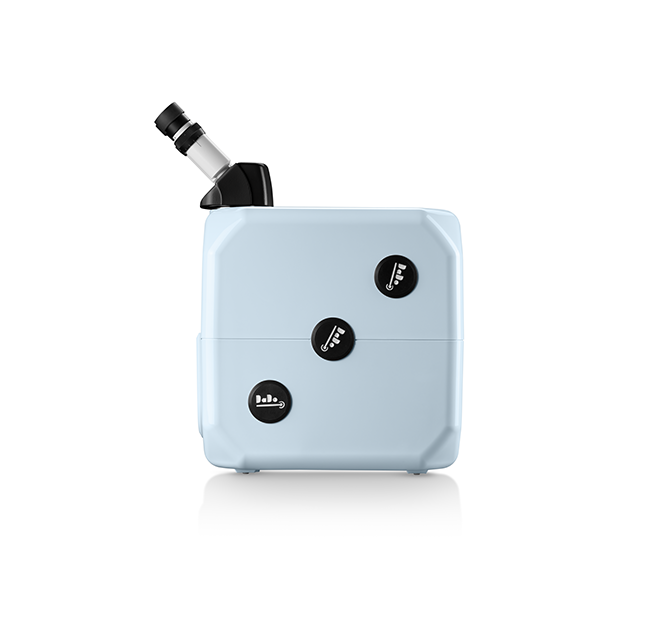

Both models share an ultra-compact design (only 34 cm wide), weigh just 15 kg, and feature integrated liquid cooling, ensuring stable operation even during prolonged working sessions. The system is designed to minimize footprint on the workbench while maintaining genuine “Made in Italy” quality.

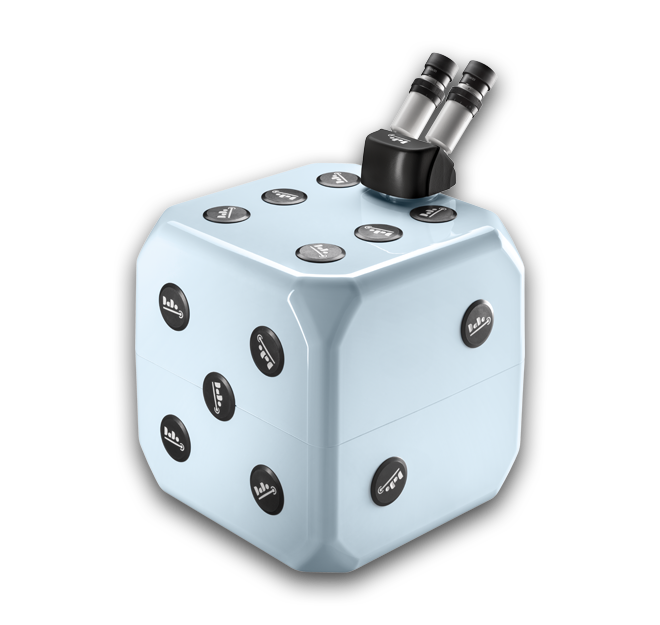

Dado 2.0 stands out for its increased peak power, the addition of dedicated firmware, and the continuous welding mode, which enables smoother and faster processing of repetitive tasks. Both models can also be controlled via a mobile app.

With solid performance and great ease of use, they are perfect tools for artisans, repair specialists, dental technicians, and small businesses seeking uncompromising precision.

Request informations

Applications

  • Welding of gold, platinum, palladium, and dental alloys
  • Repair of small jewelry pieces
  • Repairs on eyeglasses, small parts, and precision components
  • Welding of dental prosthetics, bridges, and orthodontic components
  • Micromachining of metallic materials for crafts and model making
  • Quick welding of thin or delicate components

High-level performances

  • Laser Source: Nd:Ce:YAG – 1064 nm
  • Average Power: 10 W
  • Peak Power: Dado: 1.8 kW | Dado 2.0: 2.5 kW
  • Pulse Duration: 3 ms
  • Spot Diameter: 0.2 ÷ 1.5 mm
  • Cooling: Integrated liquid cooling
  • External Control via Mobile App (Android/iOS)
  • User Interface: Simple and intuitive
  • Power Supply: 110/230 V AC – 50/60 Hz – 8A
  • Type: Desktop
  • Optional: Argon gas nozzle
Performances

Variations

DADO
Laser source and wave lenght
Nd:Ce: YAG 1064 nm
Average power
10 W
Peak power
1,8 kWp
Max frequency Hz
1,5
Impulse time
3 ms
Spot diameter
0,2 - 1,5 mm
Spot setting
manual
Microscope 10X
standard
External control
App on mobile
Water cooling system
single / 1 l
Argon noozle
optional
Type
desktop
Power supply
230 V AC, 50/60 Hz (110 on request)
Dimensions cm
34x34x34
Weight kg
15
DADO 2.0
Laser source and wave lenght
Nd:Ce: YAG 1064 nm
Average power
10 W
Peak power
2,5 kWp
Max frequency Hz
4
Impulse time
3 ms
Spot diameter
0,2 - 1,5 mm
Spot setting
manual
Microscope 10X
standard
External control
App on mobile
Water cooling system
single / 1 l
Argon noozle
optional
Type
desktop
Power supply
230 V AC, 50/60 Hz (110 on request)
Dimensions cm
34x34x34
Weight kg
15
