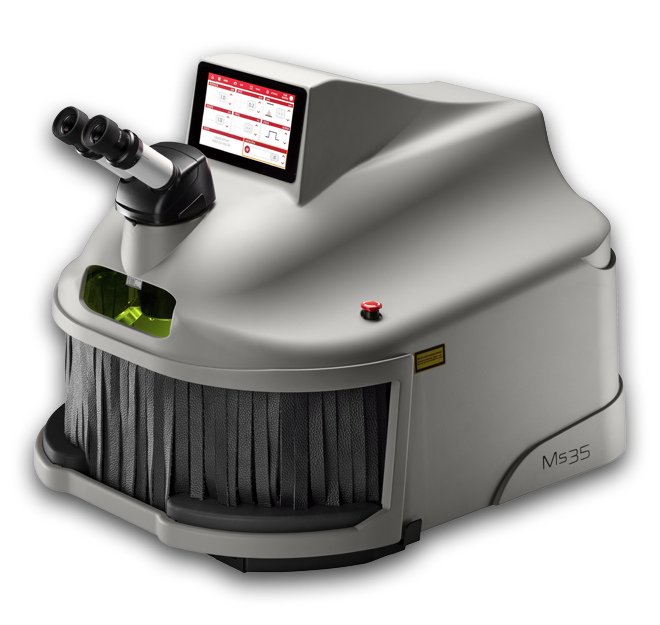

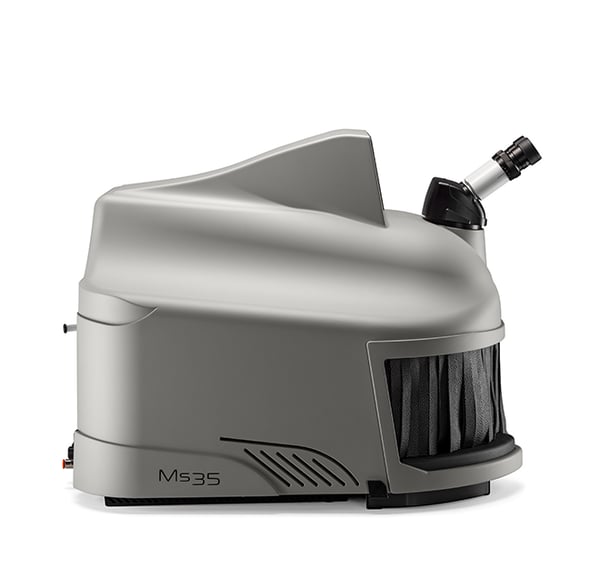

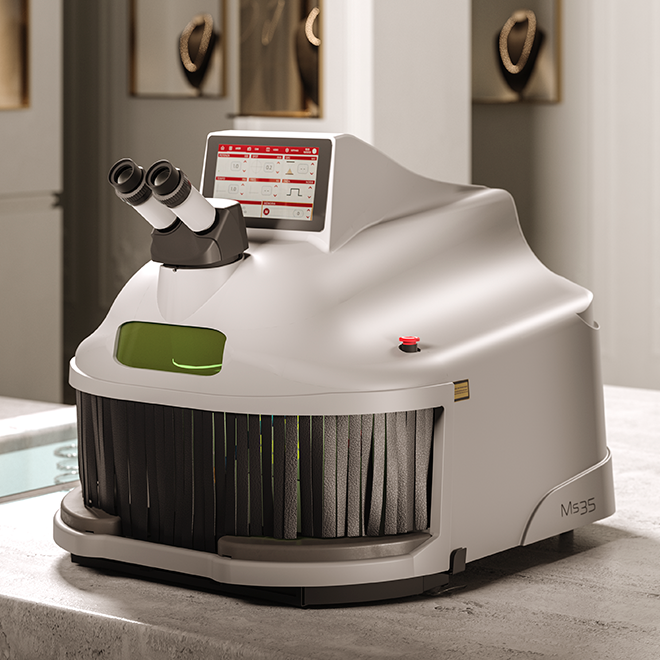

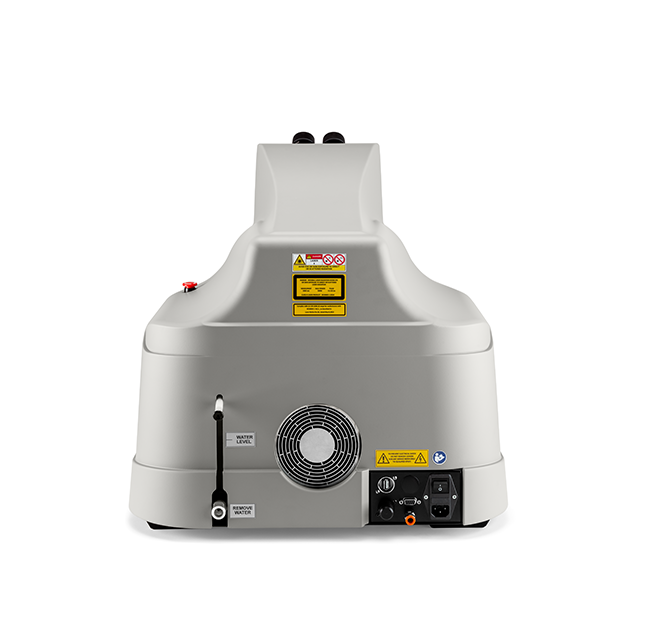

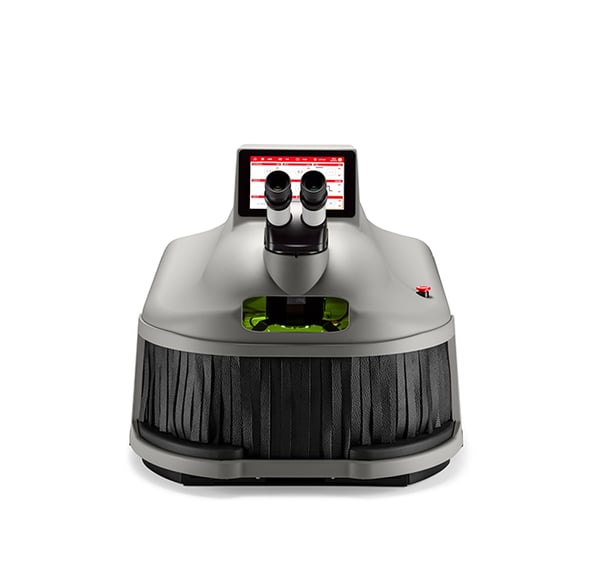

Ms 3.5

The high-performance compact laser welder for jewelry, watchmaking, and dental laboratories

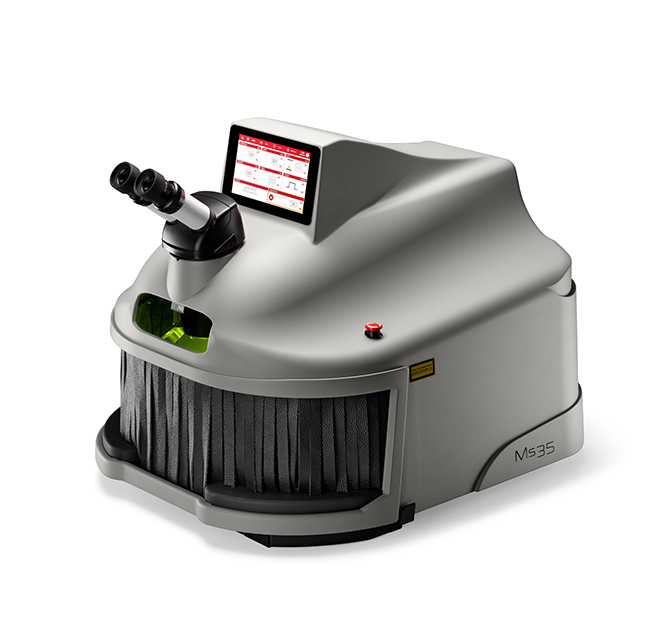

The MS 3.5 by Elettrolaser is a benchtop manual laser welder designed to ensure precision and reliability when welding precious metals and alloys. Available in three power versions – 35J, 80J, and 165J – it perfectly meets the needs of jewelers, watchmakers, dental technicians, and artisans looking for a compact yet high-performing tool.

Resulting from Elettrolaser’s ongoing research and development, the MS 3.5 combines compact size and low energy consumption with the capabilities of a professional benchtop welder.

Its ergonomic design, with reinforced casing and integrated armrests, ensures comfort during extended use.

The 7” capacitive touchscreen allows for intuitive control of welding parameters, including adjustment of the laser spot diameter from 0.2 to 2.0 mm.​

Request informations

Applications

  • Repair of gold, silver, platinum, and palladium jewelry
  • Welding of components made of steel, cobalt-chrome, and other alloys
  • Repair of watches, eyeglasses, and small metal parts
  • Restoration of antique jewelry without removing gemstones
  • Sealing of porosity and casting defects
  • Dental welding: bridges, crowns, implants, and prosthetics in Cr-Co or titanium

High-level performances

  • Laser Source: Nd:Ce:YAG 1064 nm

  • Touchscreen: 7” capacitive display

  • Cooling System: Water and air cooling

  • Gas Inlet: Argon

  • Power Supply: 230 V AC, 50/60 Hz (110 V available on request)

  • Type: Benchtop

  • Warranty: 36 months
Performances

Variations

MS 3.5 - 35
Laser source and wave lenght
Nd:Ce: YAG 1064 nm
Average power
30 W
Peak power
3 kWp
Max energy
35J
Max frequency Hz
6
Impulse time
0,1 - 12 ms
Spot diameter
0,2 - 2,0 mm
Spot setting
motorized
Wave programs
6 preset pulse shapes
Microscope 10X
standard
External control
7" Color Touch Screen
Memories cell stored
100
Water cooling system
single / 3 l
Argon noozle
yes
Type
desktop
Power supply
230 V AC, 50/60 Hz (110 on request) - 2,2 kW
Dimensions cm
55x71x53
Weight kg
35
Compressed air noozle
-
MS 3.5 - 80
Laser source and wave lenght
Nd:Ce: YAG 1064 nm
Average power
30 W
Peak power
4 kWp
Max energy
80J
Max frequency Hz
12
Impulse time
0,1 - 20 ms
Spot diameter
0,2 - 2,0 mm
Spot setting
motorized
Wave programs
6 preset pulse shapes
Microscope 10X
standard
External control
7" Color Touch Screen
Memories cell stored
100
Water cooling system
single / 3 l
Argon noozle
yes
Type
desktop
Power supply
230 V AC, 50/60 Hz (110 on request) - 2,2 kW
Dimensions cm
55x71x53
Weight kg
35
Compressed air noozle
-
MS 3.5 - 165
Laser source and wave lenght
Nd:Ce: YAG 1064 nm
Average power
75 W
Peak power
6,5 kWp
Max energy
165J
Max frequency Hz
20
Impulse time
0,1 - 25 ms
Spot diameter
0,2 - 2,0 mm
Spot setting
motorized
Wave programs
6 preset pulse shapes
Microscope 10X
standard
External control
7" Color Touch Screen
Memories cell stored
100
Water cooling system
single / 3 l
Argon noozle
yes
Type
desktop
Power supply
230 V AC, 50/60 Hz (110 on request) - 2,2 kW
Dimensions cm
55x71x53
Weight kg
35
Compressed air noozle
yes

Related accessories

Table
Steel support table.
Table
Rotating mandrel with through hole

Rotating spindle for circular objects welding

Rotating mandrel with through hole
Covered foot pedal

Covered version foot control

Covered foot pedal
Spot size 0,05 - 0,1 mm

Micro-shot for precision welding

Spot size 0,05 - 0,1 mm
Data logger

RSS remote supervisor system - Connection of all ELETTROLASER machines equipped with Wi-Fi

Data logger
Eyepiece Cover

Removable hygienic covers for laser microscopes

Eyepiece Cover

Find out more

Laser welding

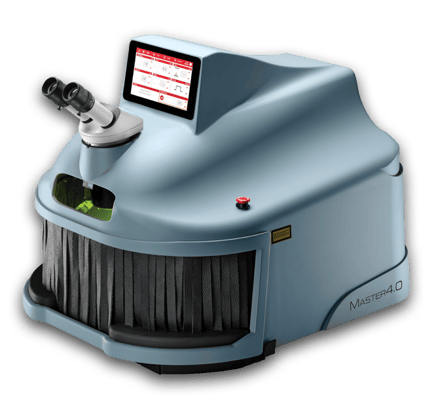

Master 4.0
