CLW
CLW - Laser welding system specifically designed for chain welding, offering precision, speed, and reliability for the jewelry and manufacturing industries.
CLW - Laser welding system specifically designed for chain welding, offering precision, speed, and reliability for the jewelry and manufacturing industries.

CLW

Laser welding system specifically designed for chain welding, offering precision, speed, and reliability for the jewelry and manufacturing industries.

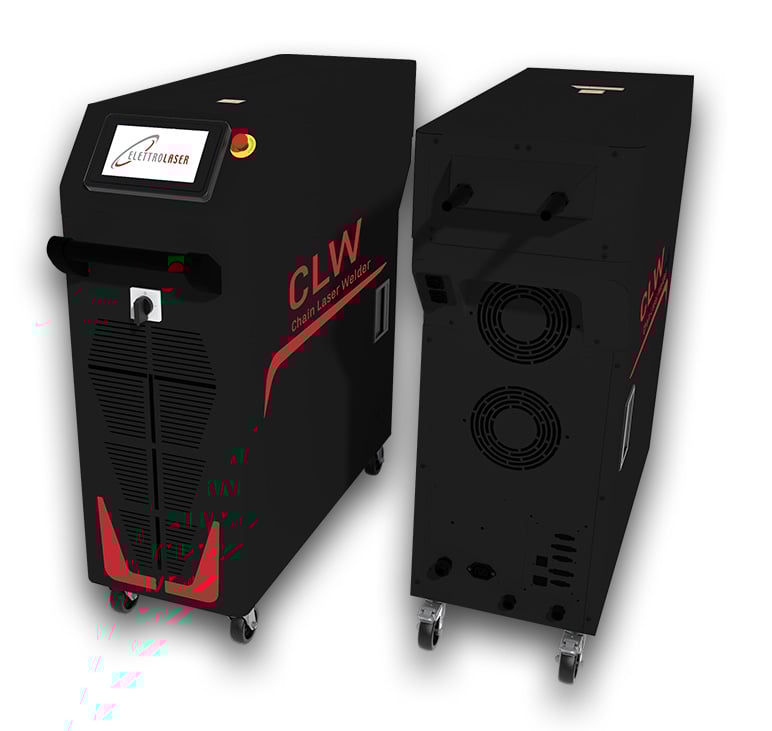

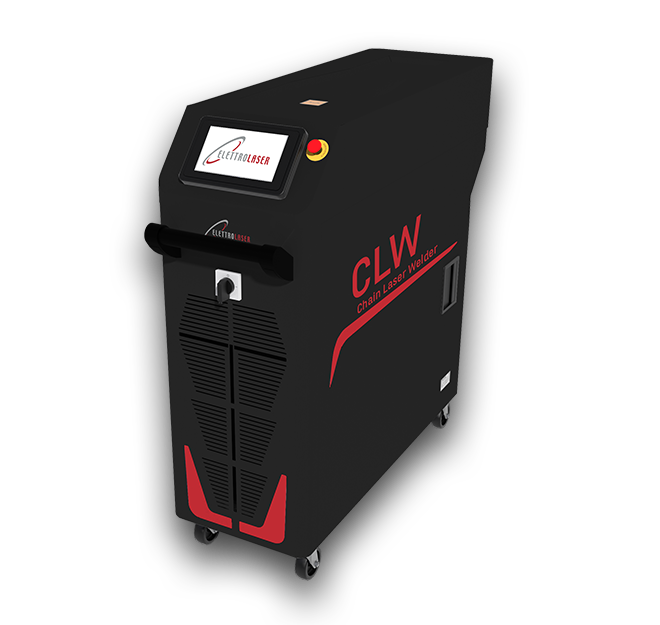

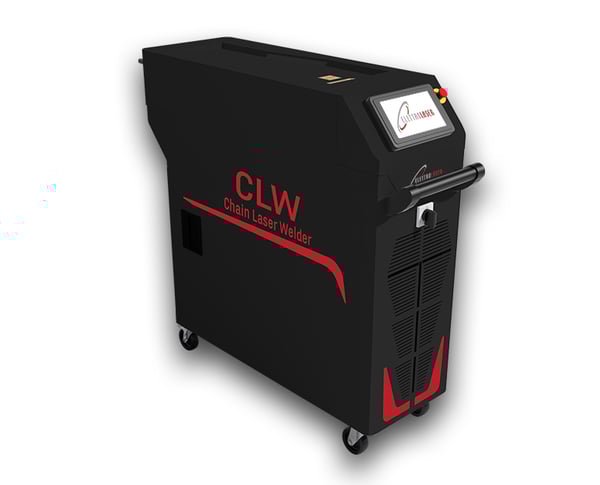

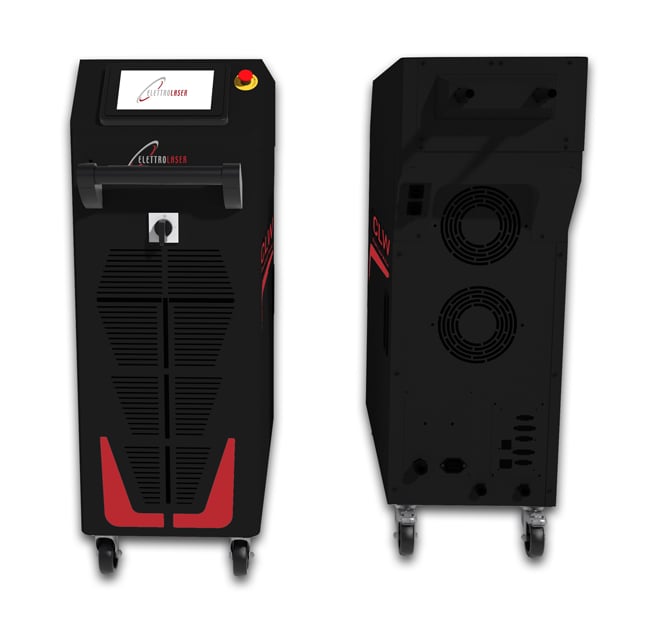

CLW – Chain Laser Welder is an automatic machine developed specifically for laser welding of chains. Equipped with an Nd:Ce:YAG laser source and an advanced control system, it ensures precise and uniform welds, improving production efficiency and reducing processing times.

The CLW – Chain Laser Welder has been designed for chain welding, a process requiring extreme precision and repeatability. Powered by an Nd:Ce:YAG laser source with adjustable power, CLW allows users to adapt the welding parameters according to different chain types and dimensions, ensuring consistent and high-quality results.

Thanks to its compact design and intuitive user interface, the CLW easily integrates into existing production lines. The advanced control system enables accurate configuration of welding parameters, ensuring consistent and high-quality results.

Completing the package is a high-efficiency cooling system that allows continuous operation without overheating, enhancing both productivity and machine lifespan.

Request informations

Applications

  • Welding of chains in gold, silver, and other precious metals
  • Production of chains for jewelry and fashion accessories

High-level performances

  • Specific application: automatic chain welding

  • Control system: intuitive user interface for welding parameter adjustment

  • Compact design: easy integration into existing production lines

  • Cooling system: efficient for continuous operations

  • Precision: uniform, high-quality welds
Performances

Variations

CLW 35 (35+35)
Laser source and wave lenght
1 or 2xNd:Ce: YAG 1064 nm
Average power
40 W
Peak power
3.6 kWp
Max energy
25J
Max frequency Hz
40
Impulse time
0.5 - 25 ms
External control
7" Color Touch Screen
Water cooling system
double - enforced / 8 l
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 3 kW
Dimensions cm
31x90x91
Weight kg
75
CLW 50 (50+50)
Laser source and wave lenght
1 or 2xNd:Ce: YAG 1064 nm
Average power
55 W
Peak power
6 kWp
Max energy
30J
Max frequency Hz
40
Impulse time
0.5 - 25 ms
External control
7" Color Touch Screen
Water cooling system
double - enforced / 8 l
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 3 kW
Dimensions cm
31x90x91
Weight kg
80
CLW 80 (80+80)
Laser source and wave lenght
1 or 2xNd:Ce: YAG 1064 nm
Average power
80 W
Peak power
7.5 kWp
Max energy
60J
Max frequency Hz
40
Impulse time
0.5 - 25 ms
External control
7" Color Touch Screen
Water cooling system
double - enforced / 8 l
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 3 kW
Dimensions cm
31x90x91
Weight kg
90
CLW 130
Laser source and wave lenght
Nd:Ce: YAG 1064 nm
Average power
130 W
Peak power
12 kWp
Max energy
80J
Max frequency Hz
40
Impulse time
0.5 - 25 ms
External control
7" Color Touch Screen
Water cooling system
double - enforced / 8 l
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 3 kW
Dimensions cm
31x90x91
Weight kg
90

Related accessories

Covered foot pedal

Covered version foot control

Covered foot pedal
Spot size 0,05 - 0,1 mm

Micro-shot for precision welding

Spot size 0,05 - 0,1 mm
Data logger

RSS remote supervisor system - Connection of all ELETTROLASER machines equipped with Wi-Fi

Data logger
