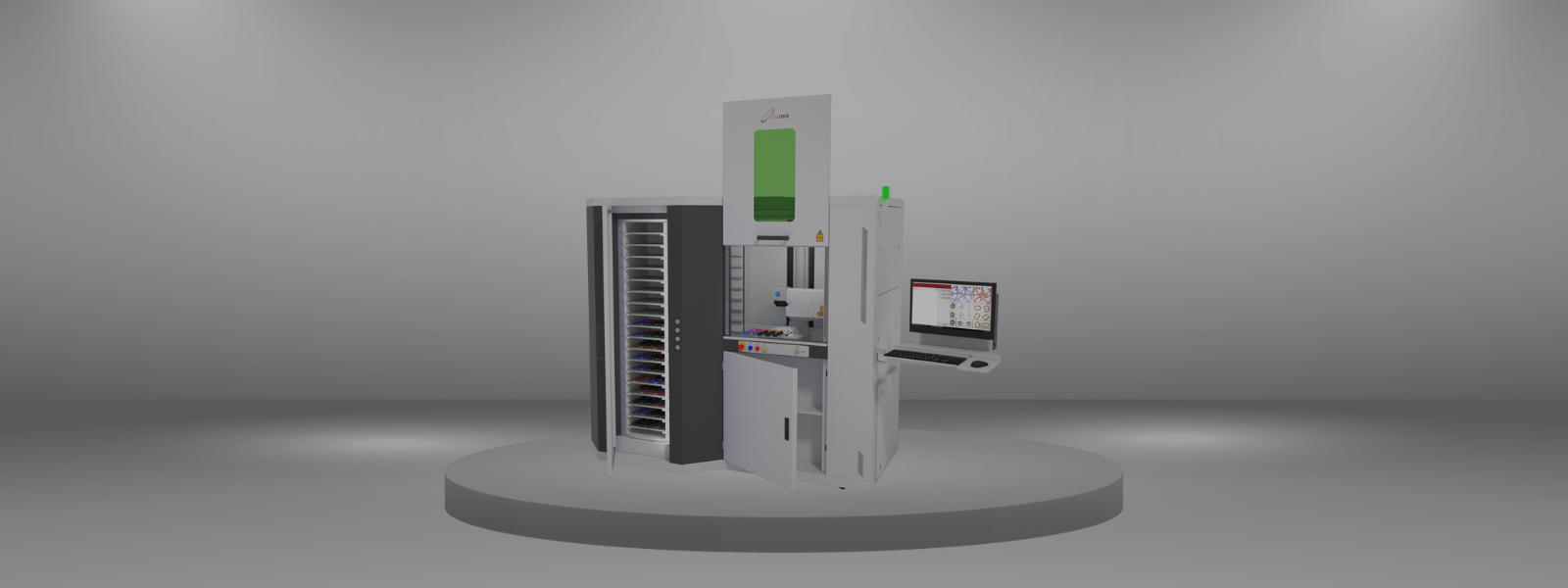

Luxmark W72
Luxmark W72 - Large-scale marking and micro-cutting with automatic management of 72 pallets and optional integration with robotic arm for fully automated workflows.

Luxmark W72

Large-scale marking and micro-cutting with automatic management of 72 pallets and optional integration with robotic arm for fully automated workflows.

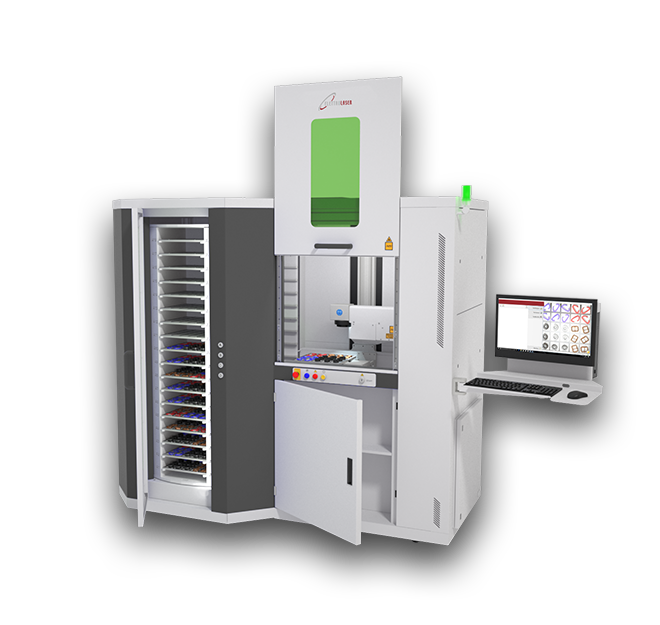

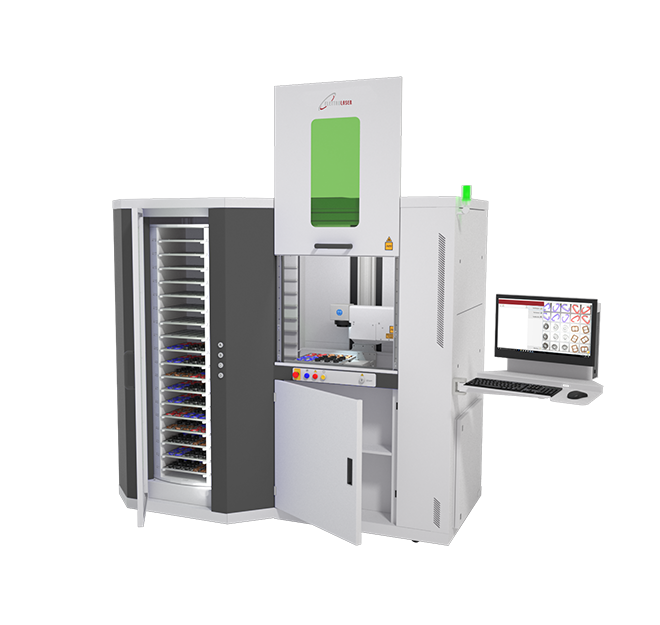

Designed for intensive production environments, the Luxmark W72 is an industrial laser system that autonomously manages up to 72 pallets. With advanced automation options, including a robotic arm, it guarantees speed, precision, and continuity in marking and micro-cutting of components.

Luxmark W72 is the most advanced solution in the range for large-scale automated laser management. Its integrated system enables the handling, lifting, and precise positioning of 72 pallets measuring 300×300 mm, making it ideal for serial production requiring repeatability and operational continuity.

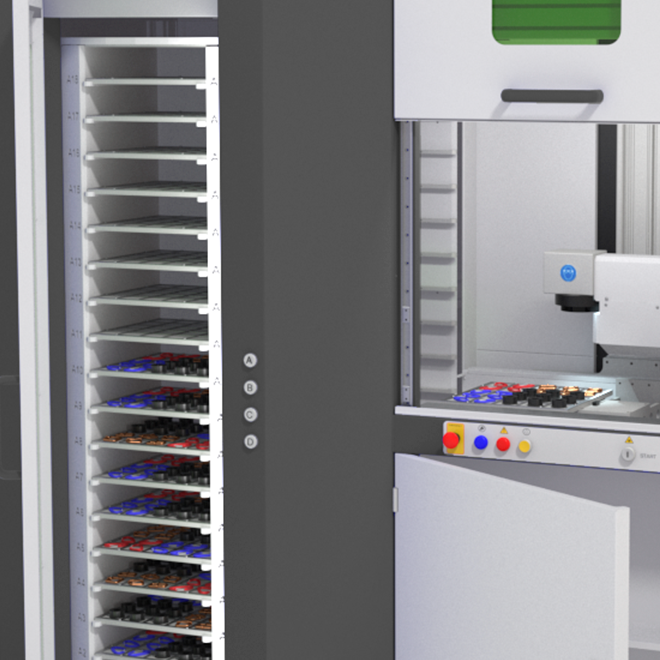

The system architecture allows continuous operation on a large number of components, optimizing production times. Each pallet is managed automatically: the system picks it up, positions it under the laser, processes it, and repositions the finished piece.

One of the most strategic options of the Luxmark W72 is the possibility to integrate a robotic arm, which can handle loading and unloading of pallets, components, or semi-finished products, raising the automation level to Industry 4.0 standards.

The system is compatible with various laser sources (fiber, MOPA, UV, GREEN), and can be configured for complex processes such as deep engraving, high-precision micro-cutting, and three-dimensional marking.

Request informations

Applications

  • Mass production of metal and plastic components
  • Precision micro-cutting for accessories, plates, technical parts
  • Deep marking and unique coding on industrial batches
  • Product traceability (serial numbers, QR codes, datamatrix)
  • High-speed customization for jewelry, mechanical, and medical sectors
  • Integration into robotic systems for unattended processing
  • Process optimization aligned with Industry 4.0

High-level performances

  • Automatic management of 72 pallets (size 300×300 mm)

  • Integrated handling: automatic lifting, positioning, and unloading

  • Structure designed for continuous 24/7 production

  • Configurable with fiber, MOPA, UV, or GREEN laser sources

  • Compatible with 2D, 2.5D, and 3D processing

  • Professional software for advanced marking and process control
Performances

Variations

Luxamrk W72 - Fiber
Cooling system
air
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 3 kW

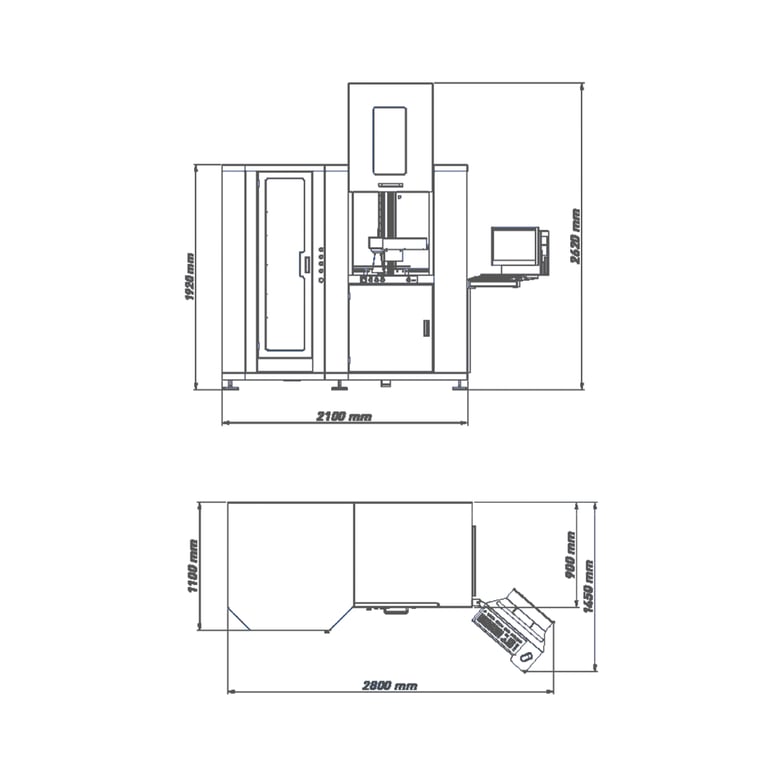

Dimensions cm
210x115x192
Weight kg
1000*
Wave lenght
1064 nm
Working area
66x50
Focal 100: marking area / spot
6x6 cm / 16 um
Focal 160: marking area / spot
10x10 cm / 26 um
Focal 210: marking area / spot
14x14 cm / xx
Focal 254: marking area / spot
17x17 / xx
Focal 330: marking area / spot
23x23 cm / XX
Focal 420: marking area / spot
28x28 c,m / xx
Axes Z
motorized / 30 cm
Axis stroke
X: 70 cm; Y: 25 cm; Z: 30 cm;
Laser Class
I
Number of pallets
72
Maximum pallet size
30 x 30 cm
Maximum pallet weight
5 kg
Luxamrk W72 - Green
Cooling system
air
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 3 kW
Dimensions cm
210x115x192
Weight kg
1000*
Wave lenght
532 nm
Working area
66x50
Focal 100: marking area / spot
6x6 cm / 16 um
Focal 160: marking area / spot
10x10 cm / 26 um
Focal 210: marking area / spot
14x14 cm / xx
Focal 254: marking area / spot
17x17 / xx
Focal 330: marking area / spot
23x23 cm / XX
Focal 420: marking area / spot
28x28 c,m / xx
Axes Z
motorized / 30 cm
Axis stroke
X: 70 cm; Y: 25 cm; Z: 30 cm;
Laser Class
I
Number of pallets
72
Maximum pallet size
30 x 30 cm
Maximum pallet weight
5 kg
Luxamrk W72 - UV
Cooling system
air
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 3 kW
Dimensions cm
210x115x192
Weight kg
1000*
Wave lenght
355 nm
Working area
66x50
Focal 100: marking area / spot
6x6 cm / 16 um
Focal 160: marking area / spot
10x10 cm / 26 um
Focal 210: marking area / spot
14x14 cm / xx
Focal 254: marking area / spot
17x17 / xx
Focal 330: marking area / spot
23x23 cm / XX
Focal 420: marking area / spot
28x28 c,m / xx
Axes Z
motorized / 30 cm
Axis stroke
X: 70 cm; Y: 25 cm; Z: 30 cm;
Laser Class
I
Number of pallets
72
Maximum pallet size
30 x 30 cm
Maximum pallet weight
5 kg
Luxamrk W72 - CO2
Cooling system
air
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 3 kW
Dimensions cm
210x115x192
Weight kg
1000*
Wave lenght
10600 nm
Working area
66x50
Focal 100: marking area / spot
6x6 cm / 16 um
Focal 160: marking area / spot
10x10 cm / 26 um
Focal 210: marking area / spot
14x14 cm / xx
Focal 254: marking area / spot
17x17 / xx
Focal 330: marking area / spot
23x23 cm / XX
Focal 420: marking area / spot
28x28 c,m / xx
Axes Z
motorized / 30 cm
Axis stroke
X: 70 cm; Y: 25 cm; Z: 30 cm;
Laser Class
I
Number of pallets
72
Maximum pallet size
30 x 30 cm
Maximum pallet weight
5 kg

Related accessories

Guide plate

A useful accessory for large-scale production of marked and cut objects. It features a special extractor system that keeps the work area clean.

Guide plate
Pneumatic tilting mandrel

The automatic spindle allows for internal and external marking without the assistance of an operator. The dedicated software automatically positions the laser focus as the ring diameters vary.

Pneumatic tilting mandrel
Static vise

The static vise is a useful accessory for holding sheets or round pieces for small production runs. Available in two versions, 100 or 200 mm, it is self-centering with a maximum opening of 100 mm.

Static vise

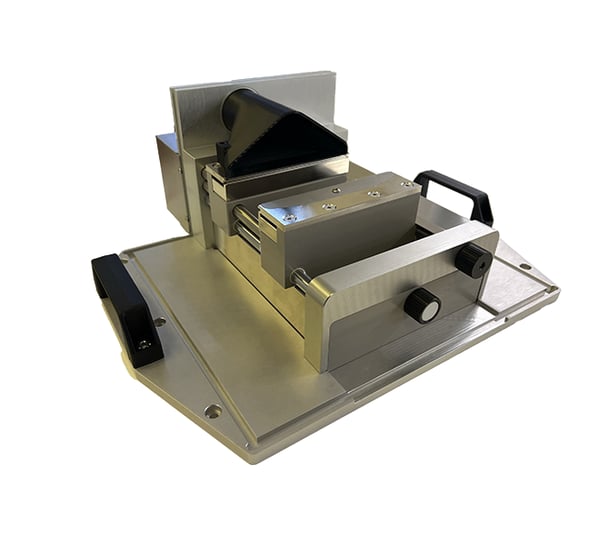

Pneumatic vise

The pneumatic vice allows for quick and reliable clamping of workpieces during marking, engraving or cutting operations.

Pneumatic vise

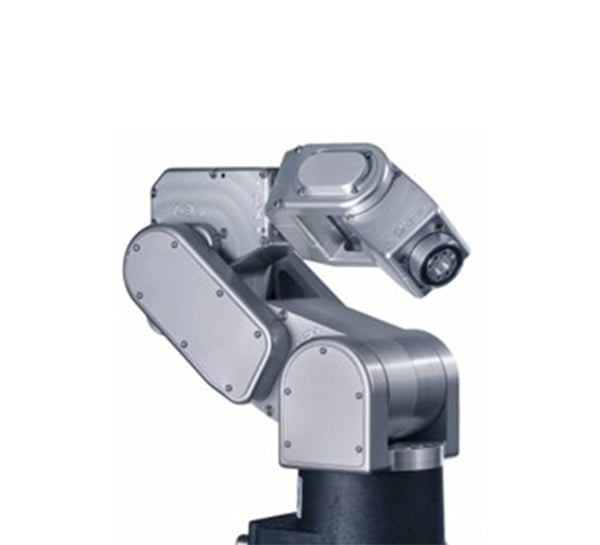

6-axis robot

6-axis robotic arm capable of performing engravings on different parts of the object.

6-axis robot

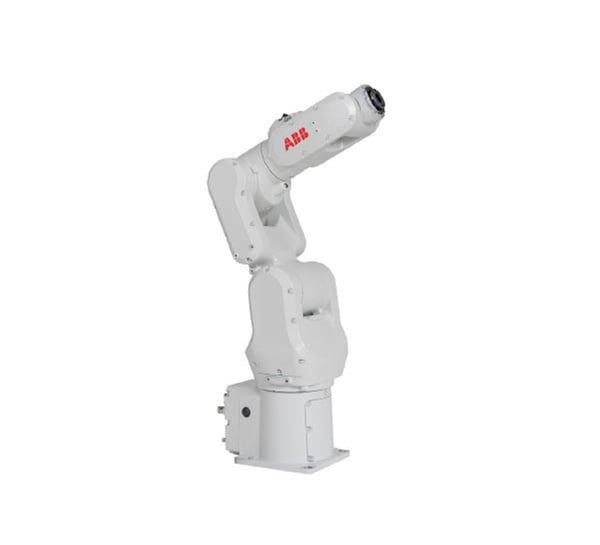

Industrial 6-axis robot

6-axis robotic arm capable of performing engravings on different parts of the object.

Industrial 6-axis robot
2.5D software

The 2.5D software allows marking on flat and curved pieces. The dedicated software automatically creates the sections (layers) set by the operator.

2.5D software
3D marking head

Innovative marking head that, combined with specific 3D software, allows marking on curved surfaces, such as spheres, cones, inclined planes or complex and irregular profiles.

3D marking head
Pattern matching technology

Ideal accessory for centering markings on workpieces. Much more defined than the classic red rectangle. In the MANUAL version, the operator always positions the file on the workpiece. In the AUTOMATIC version, the camera positions the marking file on the workpieces.

Pattern matching technology
Manual mandrel

A chuck with a single collet for gripping rings or tubular elements both internally and externally. The collets are removable for easy inspection of the workpiece.

Manual mandrel
Reverse engineering technology

Accessory used to obtain curves useful for marking and/or cutting on flat objects

Reverse engineering technology
"Italia Turrita" mark

This software allows the laser application of the “Italia Turrita” trademark by ISO/IEC 17025 accredited bodies, guaranteeing the conformity of goldsmith products in markets belonging to the European Union.

"Italia Turrita" mark
Goldsmith's mark

In accordance with Italian legislation, this software allows you to apply the trademark after having made a request to the competent chamber of commerce.

Goldsmith's mark
3-jaw mandrel

The chucks are designed to grip round workpieces. The 50 mm diameter is always equipped with a magnetic grip, while the 80 mm diameter is locked with screws due to its workpiece gripping capacity.

3-jaw mandrel
Dynamic height transducer
  • Indispensable for measuring the height of a piece
  • Reading value from 40 to 140 mm
  • Automatically positions the "Z" axis to the detected value for the S, M, and TOP versions. In the S version, however, it only detects the value
Dynamic height transducer

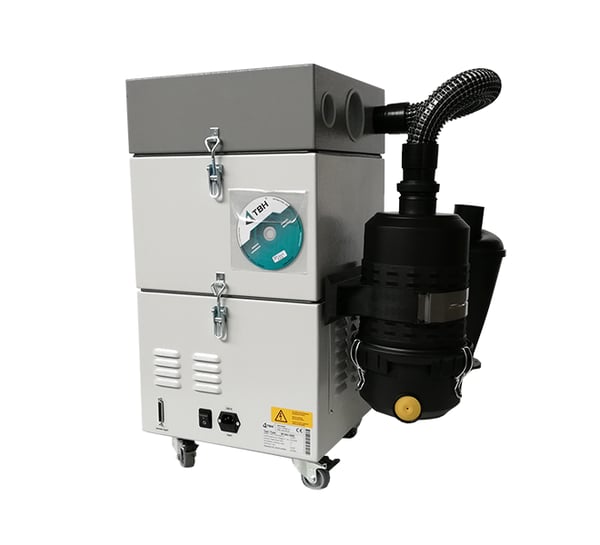

Vacuum extractor

Equipped with an internal cyclone and HEPA filter. Interfaced with the marking laser, it turns on and off automatically.

Vacuum extractor
Tube cutting

Ideal for industrial applications, the tube cutter allows for the precise and automated cutting of tubes of various diameters.

Tube cutting
Safety glasses

Safety glasses are mandatory for any work with class IV lasers (open lasers)

Safety glasses

Find out more

Laser marking and cutting

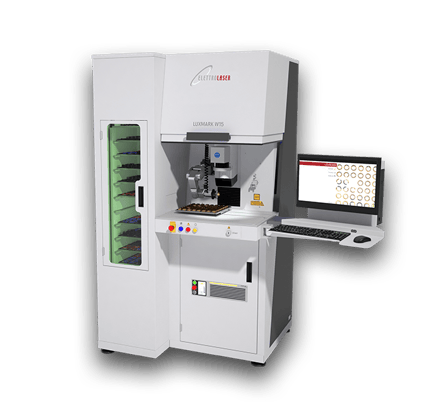

Luxmark W15
